SD-1500-S

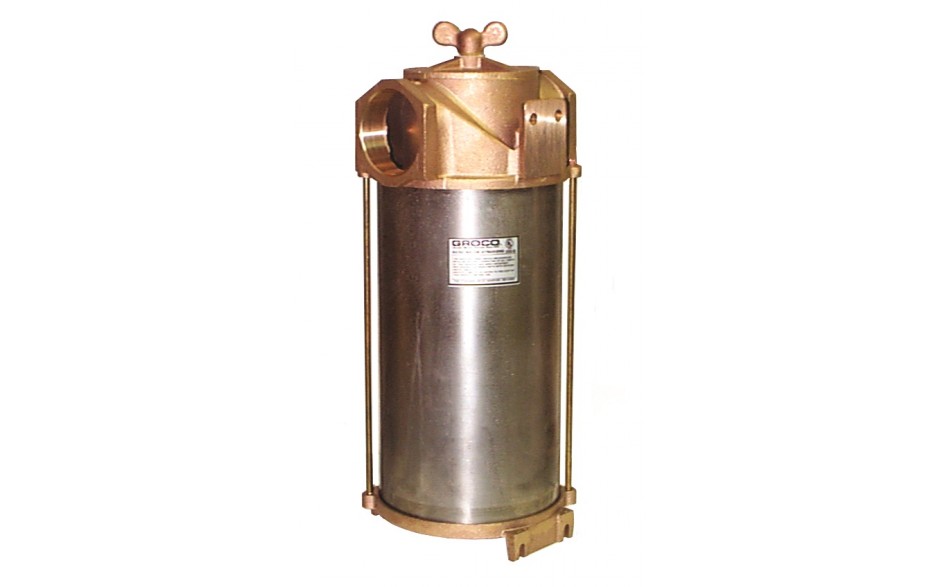

SD-1500-S 1-1/2" Raw Water Strainer

Features

  • Greater filtering capacity than GROCO ARG or SA model strainers.
  • Improved cylindrical filter basket.
  • Improved design secures filter basket under all flow conditions.
  • O-rings seal all mating surfaces.
  • Monel inside tie rod.
  • Crystal Clear cast acrylic sight glass
  • Easy service is provided by the spin-off wingnut.
  • C84400 bronze construction.
  • UL Listed 255D

Additional Information
Spec Sheet No
Basket Type #304 Stainless Steel (-S Suffix)
Thread NPT 1-1/2"
Open Area Ratio 36
Dimensions
Thread NPT1-1/2"
A14.5
B8.9
C8.4
D3.8
E -
Open Area Ratio36

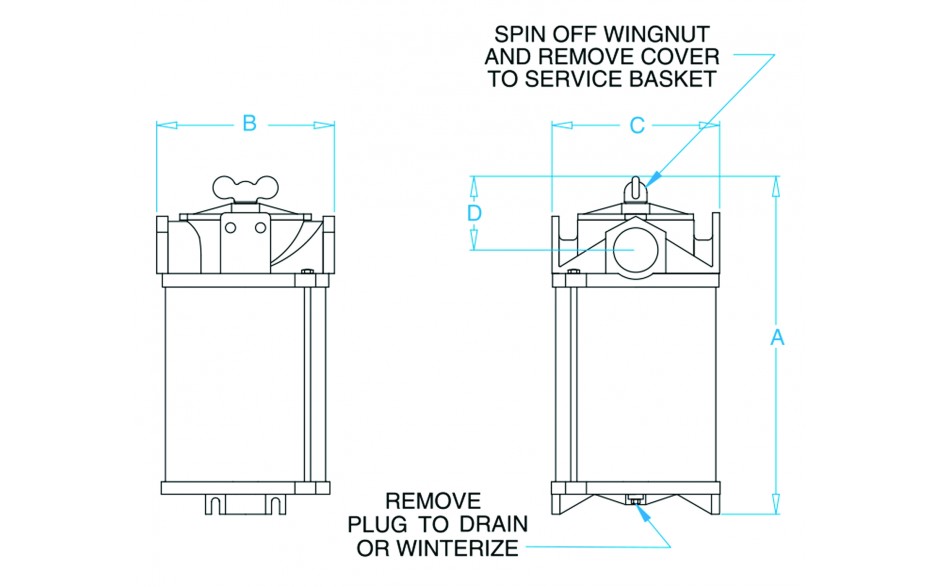

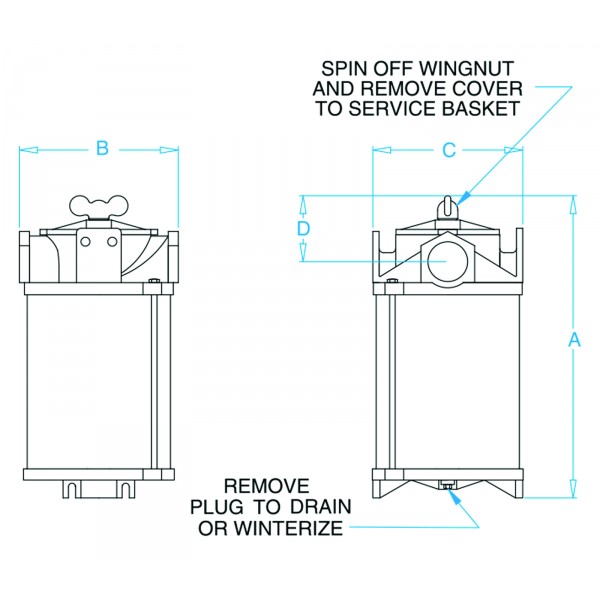

dimensions image
 Download Image  Open in New Window
Individual Parts

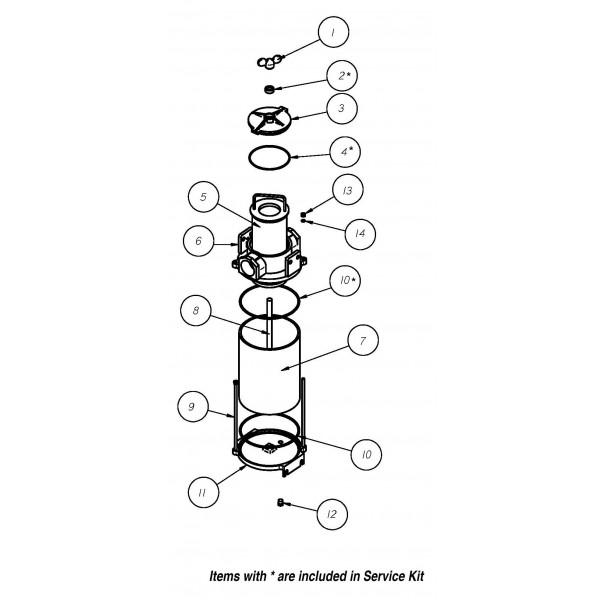

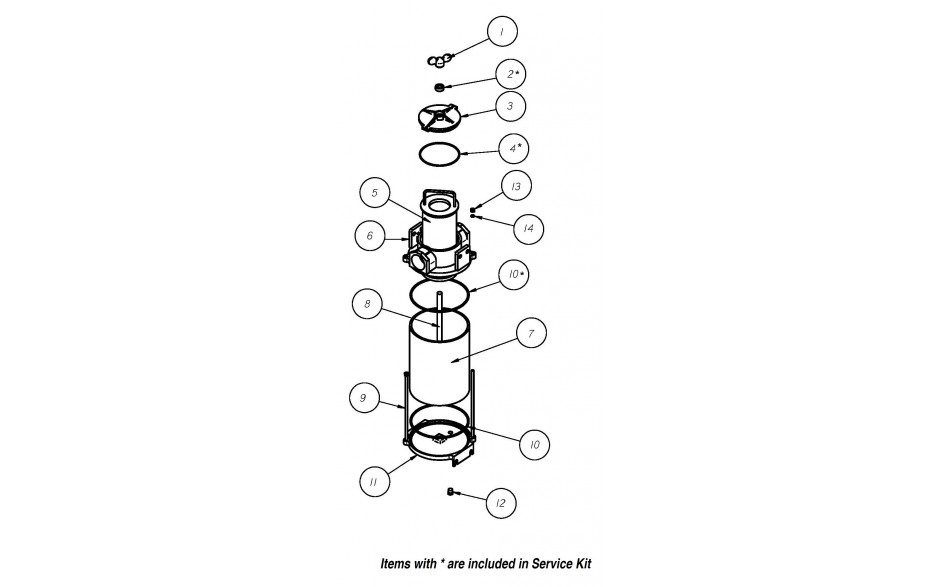

exploded image
 Download Image  Open in New Window
  • 1
    S-85
    $69.00
    Qty Per Unit: 1
  • 2
    SD-11
    $7.00
    Qty Per Unit: 1
  • 3
    SD-14
    $351.00
    Qty Per Unit: 1
  • 4
    2-251
    $4.00
    Qty Per Unit: 1
  • 5
    SSD-17-D
    $401.00
    Qty Per Unit: 1
  • 6
    SD-1500-H
    $1,322.00
    Qty Per Unit: 1
  • 7
    SD-21-D
    $319.00
    Qty Per Unit: 1
  • 8
    SD-15-D
    $244.00
    Qty Per Unit: 1
  • 9
    SD-20-D
    $13.00
    Qty Per Unit: 2
  • 10
    2-367
    $8.00
    Qty Per Unit: 2
  • 11
    SD-16
    $550.00
    Qty Per Unit: 1
  • 12
    1418HB
    $7.00
    Qty Per Unit: 1
  • 14
    516SS
    $1.00
    Qty Per Unit: 2
  • 15
    SD
    $45.00
    Qty Per Unit: 1
