SCUS-1250

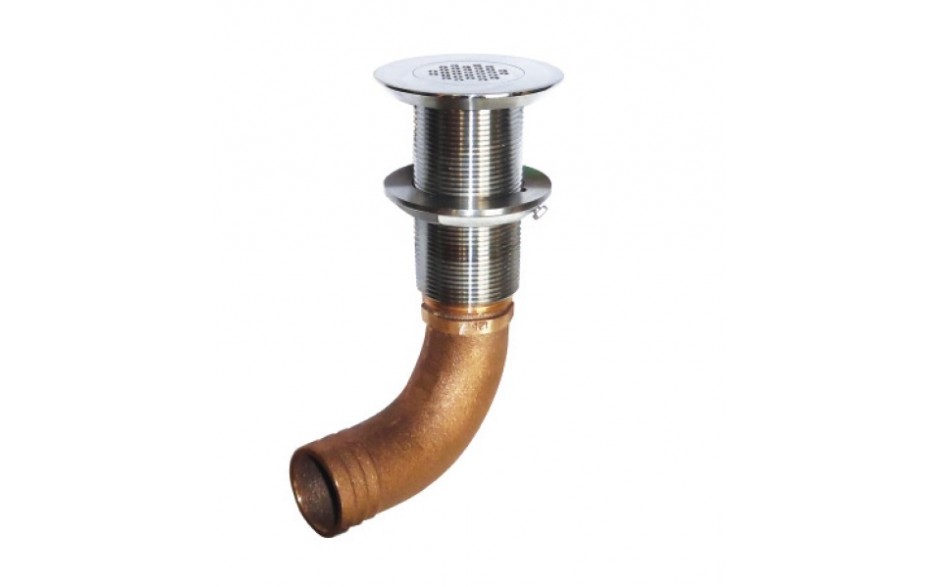

1-1/4" Hose Barb Stainless Deck Drain
Features:
- Scuppers are installed flush with the deck and have a removable drain.
- #316 Stainless Steel Thru Deck Drain with Bronze Hose Connection
- 1-1/4" and 1-1/2" ID hose connections are offered in straight, 45 degree and 90 degree orientation.
Additional Information
Thread NPS | 1-1/4" |
---|---|
Hose ID (in) | 1-1/4" |

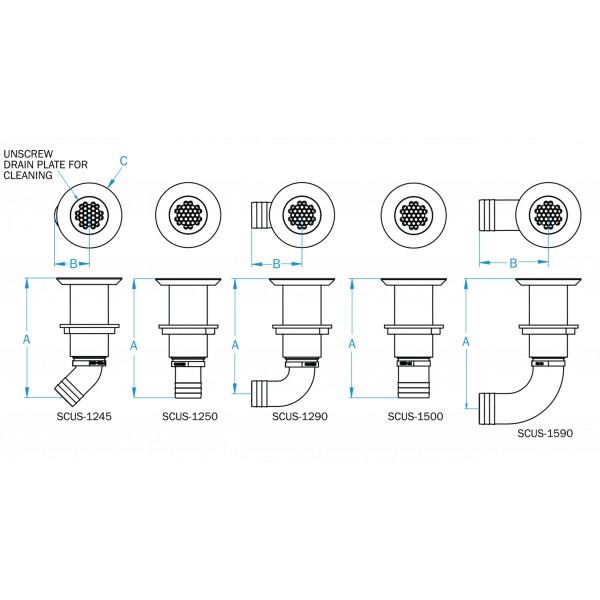

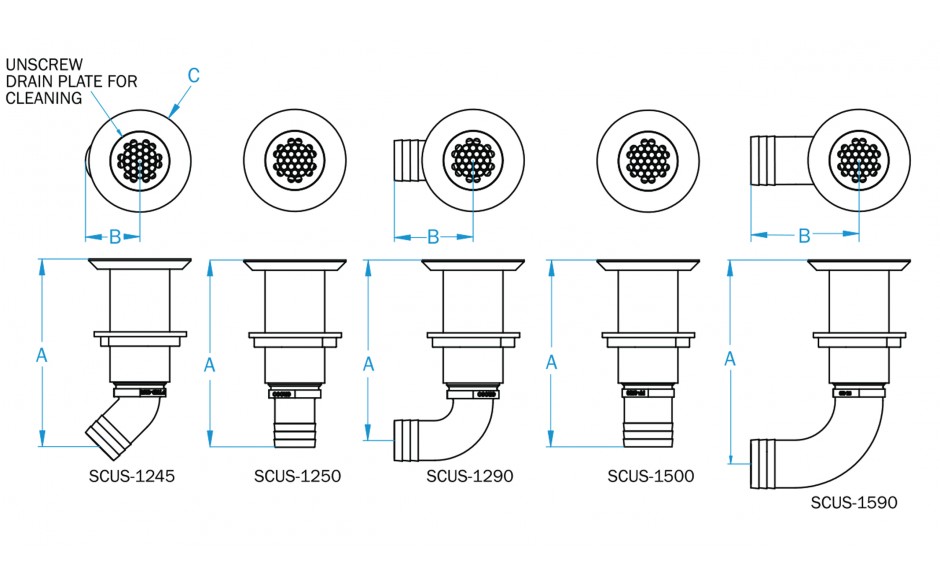

Dimensions
Thread NPS | 1-1/4" |
Hose ID (in) | 1-1/4" |
A | 5.9 |
B | - |
C | 3.2 |
D | - |
E | - |
