APHS Series
THE CONCEPT
The patented door provides access to the thru-hull fitting and seacock inlet beneath APHS hull strainers. There is no need to remove the entire strainer to clear nuisance marine growth.
Aluminum models may be welded or screwed to aluminum hulls.
FEATURES
- Made in the USA
- Patented access door design allows easy access to Thru Hulls
- C84400 bronze body and door.
- #304 stainless steel filter screen available with .077", .125", and .188" perforated diameters.
- Easy field replaceable screen.
- Pressure relief holes in door casting.

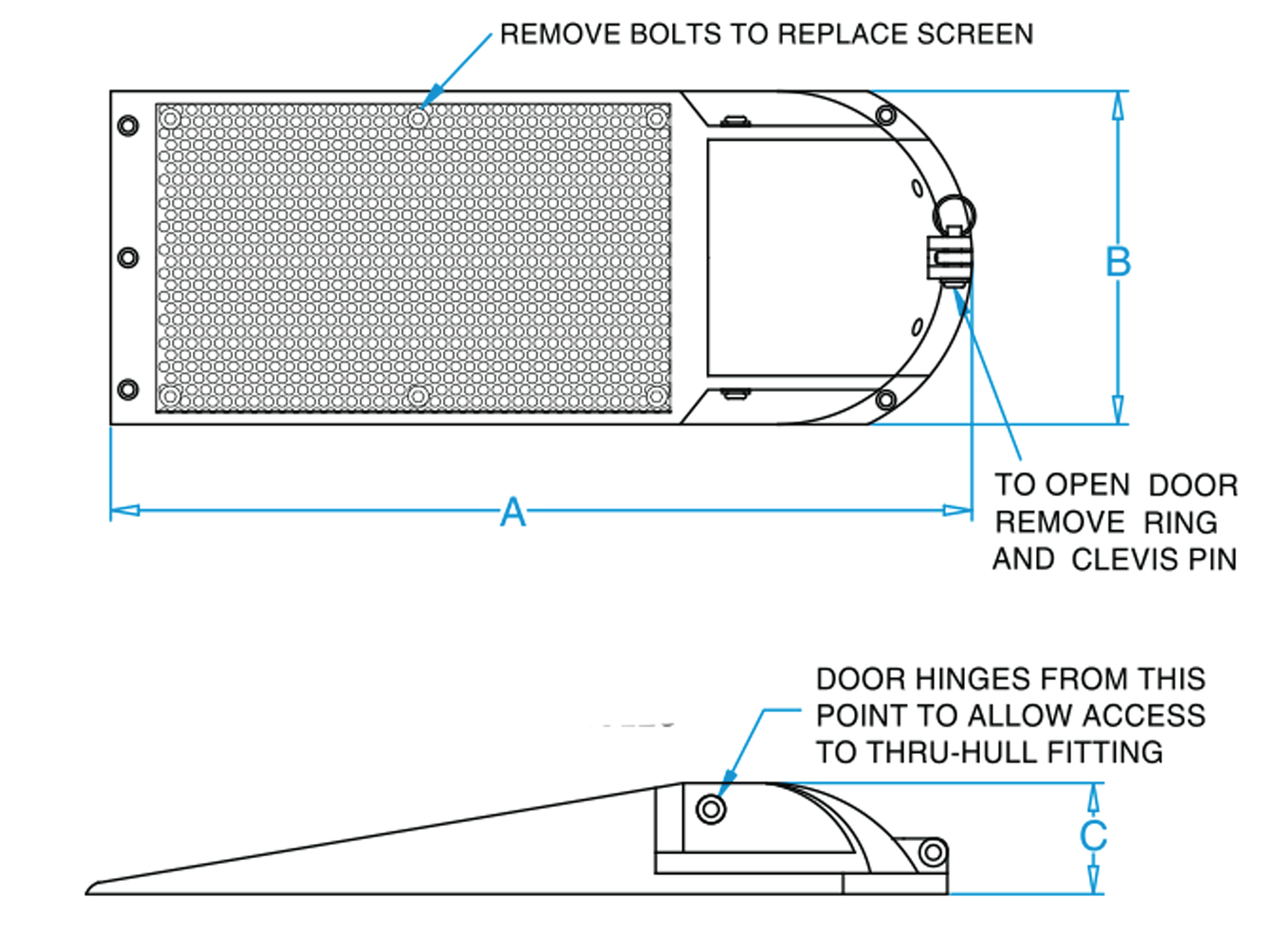

| Product Name | Max T-Hull | Perf Dia. | A | B | C |
|---|---|---|---|---|---|
APHS-1250-1 |
1-1/4" | .077" | 7 | 3.38 | 1.5 |
APHS-2000-1 |
2" | .077" | 10.25 | 4.38 | 1.63 |
APHS-3000-1 |
3" | .077" | 15.38 | 6 | 2 |
APHS-6000-1 |
4" | .077" | 20.25 | 11 | 4 |
APHS-1250-2 |
1-1/4" | .125" | 7 | 3.38 | 1.5 |
APHS-2000-2 |
2" | .125" | 10.25 | 4.38 | 1.63 |
APHS-3000-2 |
3" | .125" | 15.38 | 6 | 2 |
APHS-6000-2 |
4" | .125" | 20.25 | 11 | 4 |
APHS-1250-3 |
1-1/4" | .188" | 7 | 3.38 | 1.5 |
APHS-2000-3 |
2" | .188" | 10.25 | 4.38 | 1.63 |
APHS-3000-3 |
3" | .188" | 15.38 | 6 | 2 |
APHS-6000-3 |
4" | .188" | 20.25 | 11 | 4 |
