APHS-1250-3 AL

Aluminum Hull Scoop Strainer with Access Door for up to 1-1/4" Thru Hull

FEATURES:

  • Patented access door design allows easy access to Thru Hulls.
  • #319 aluminum body and door.
  • #304 filter screen available in .077", .125", and .188" perforated diameters.
  • Easy field replaceable screen.
  • Pressure relief holes in door casting.

Additional Information
Max T-Hull 1-1/4"
Perf Dia. .188"

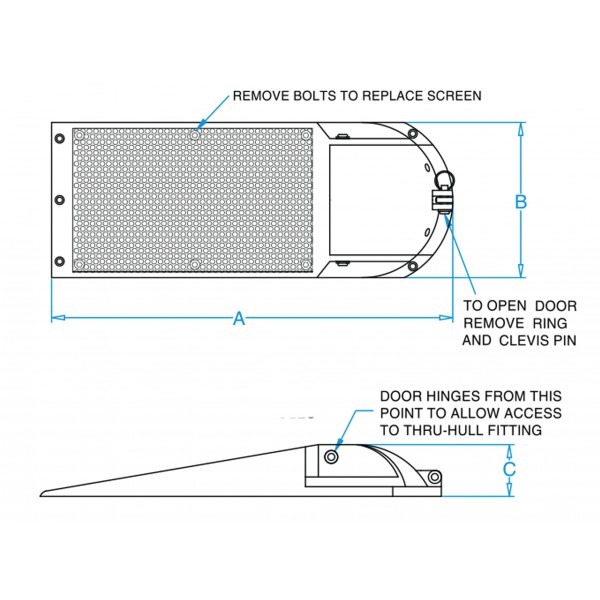

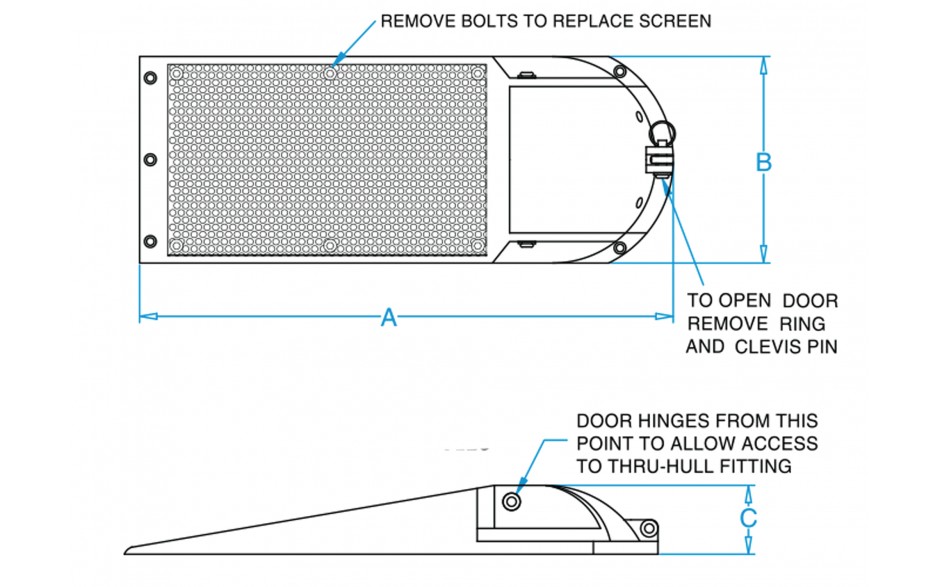

Dimensions
Max T-Hull1-1/4"
Perf Dia..188"
A7
B3.38
C1.5
dimensions image
 Download Image  Open in New Window

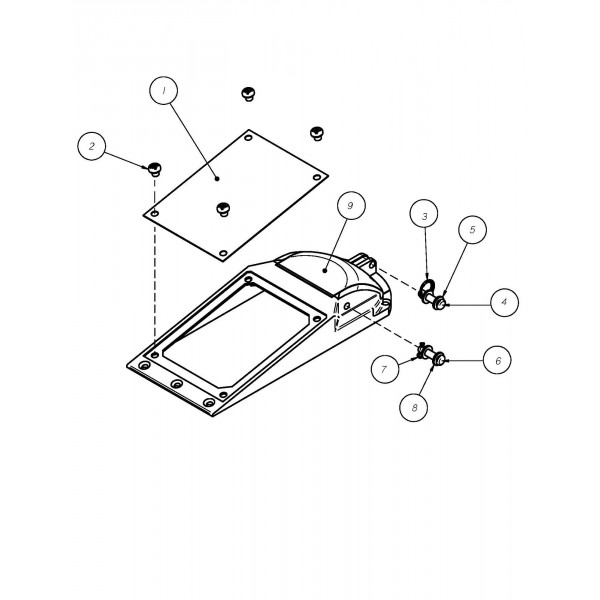

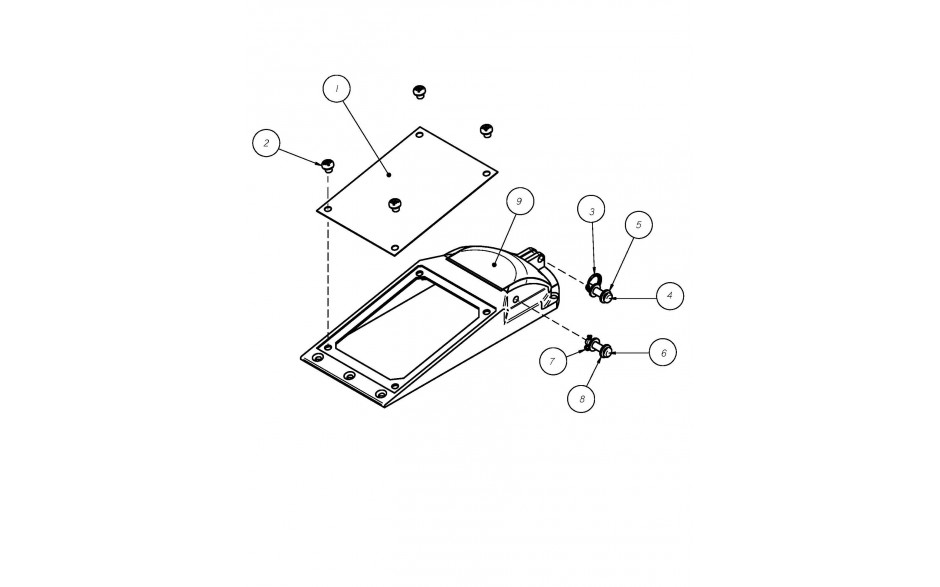

Individual Parts
exploded image
 Download Image  Open in New Window
  • 1
    93-1250-03
    $17.00
    Qty Per Unit: 1
  • 2
    1420X38PPP
    $1.00
    Qty Per Unit: 4
  • 3
    PIN-11
    $2.00
    Qty Per Unit: 1
  • 4
    PIN-13
    $12.00
    Qty Per Unit: 1
  • 5
    PFW-2 SET
    $5.00
    Qty Per Unit: 1
  • 6
    PIN-10
    $10.00
    Qty Per Unit: 2
  • 7
    PIN-12
    $2.00
    Qty Per Unit: 2
  • 8
    PFW-K
    $1.00
    Qty Per Unit: 4
  • 9
    APHS-1250-A
    $999,999.00
    Qty Per Unit: 1
