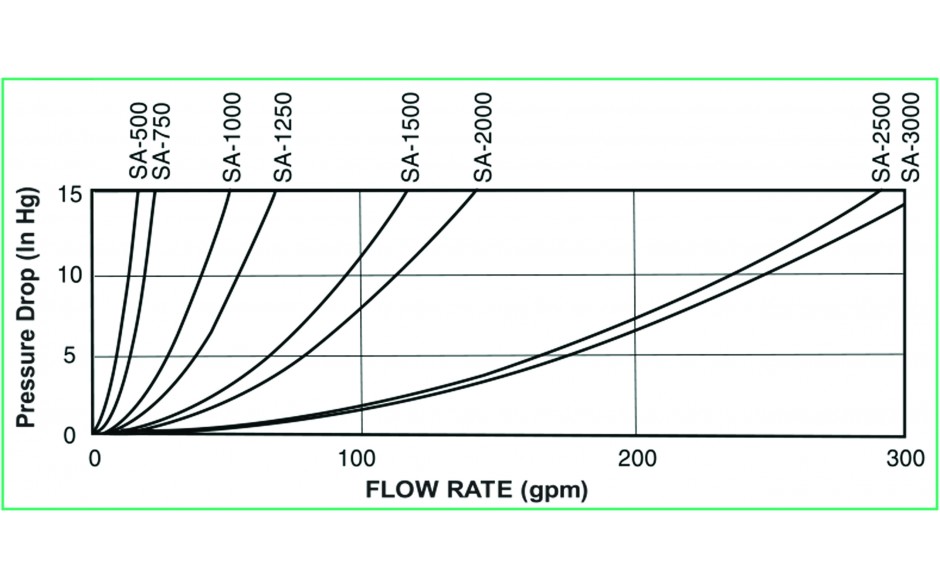

  • flow-chart

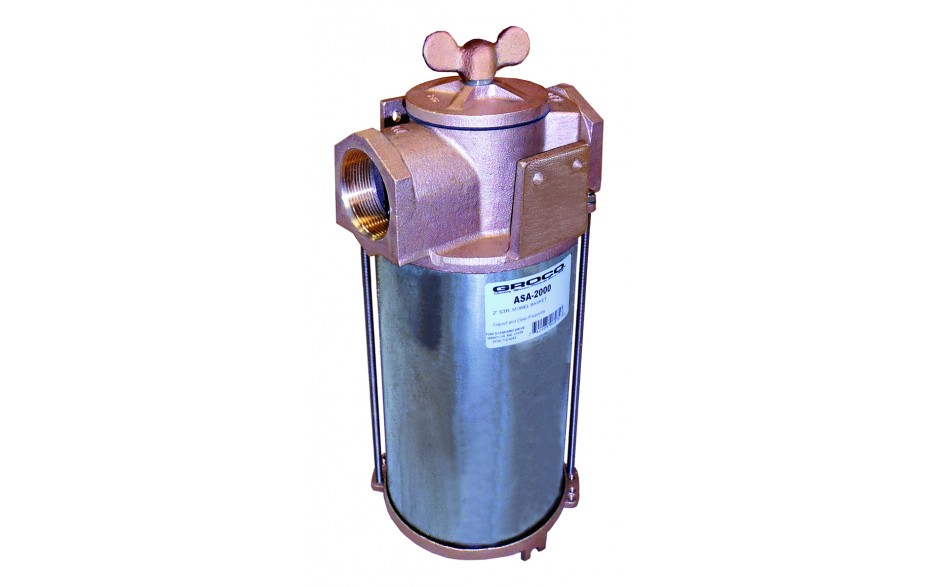

ASA-3000 Series

 3" Raw Water Strainer

 FEATURES

  • Standard with #304 stainless steel filter basket. (Monel is optional)
  • Monel inside tie rod and #316 Stainless Steel outer tie rods.
  • Easy service with spin-off-wingnut.
  • C84400 bronze construction.
  • #316 SS Enclosure for ABS compliance
  • Fine mesh filter baskets are also available.

Additional Information
Spec Sheet No
Thread NPT 3"
Open Area Ratio 9
Dimensions
Thread NPT3"
A21.5
B7.8
C6.3
D4
E -
Open Area Ratio9

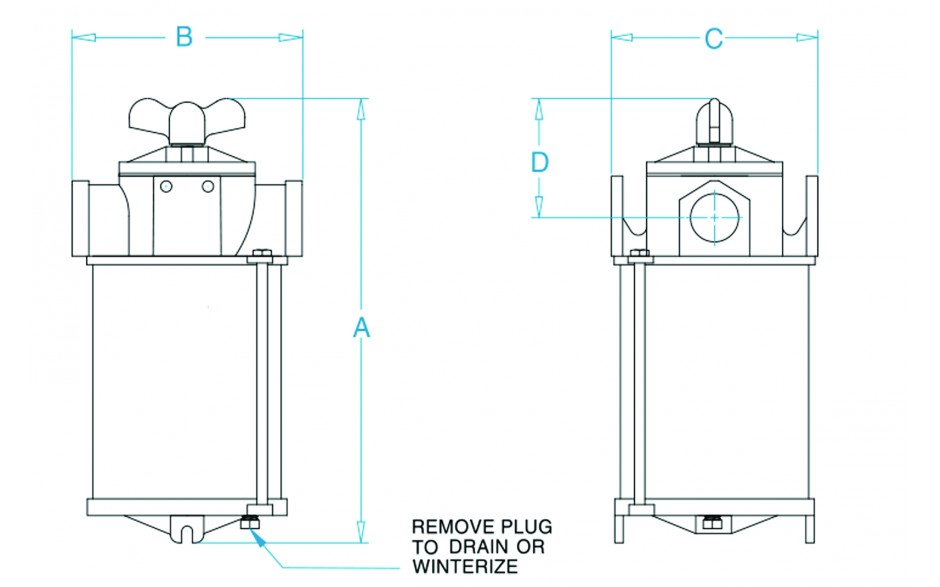

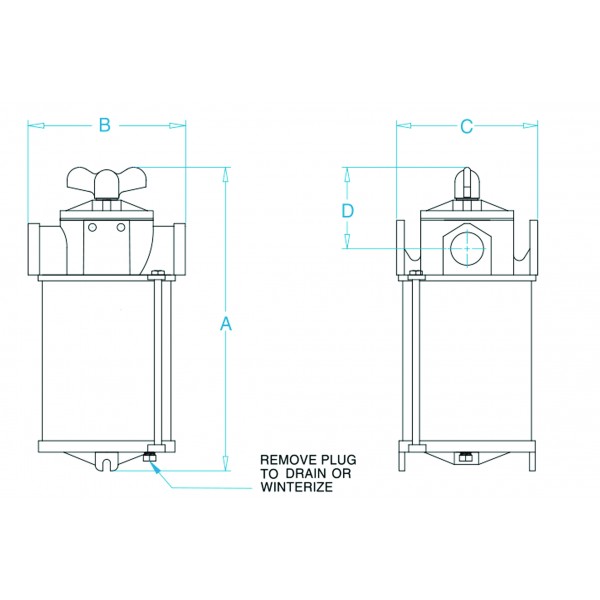

dimensions image
 Download Image  Open in New Window
Individual Parts

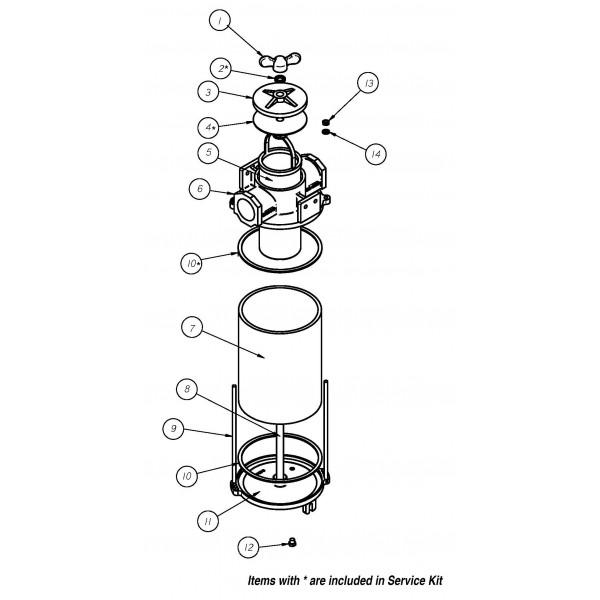

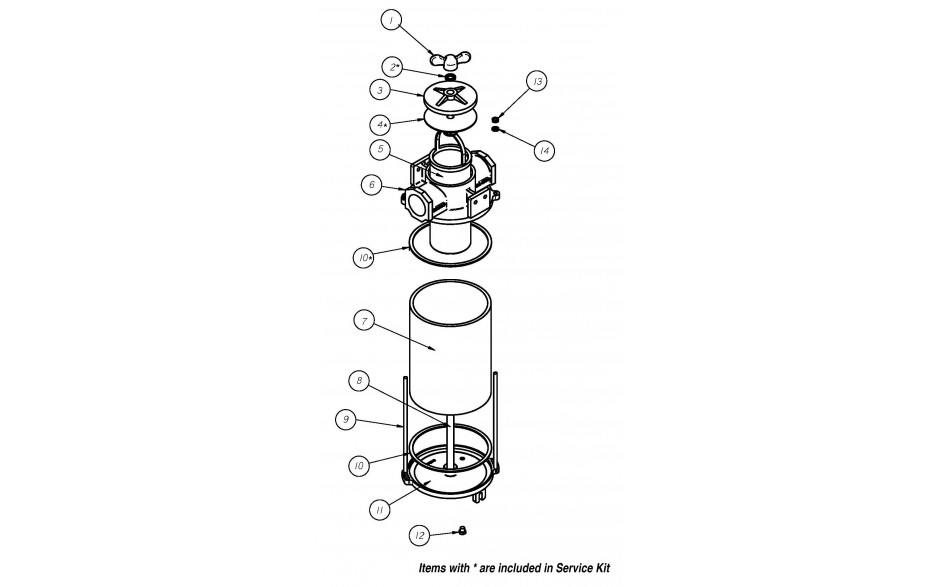

exploded image
 Download Image  Open in New Window
  • 1
    S-75
    $40.00
    Qty Per Unit: 1
  • 2
    504-F
    $1.00
    Qty Per Unit: 1
  • 3
    S-86
    $117.00
    Qty Per Unit: 1
  • 4
    S-86-A
    $4.00
    Qty Per Unit: 1
  • 5
    BS-19
    $114.00
    Qty Per Unit: 1
  • 5
    BM-19
    $475.00
    Qty Per Unit: 1
  • 5
    BP-19
    $135.00
    Qty Per Unit: 1
  • 6
    S-3000-A
    $1,181.00
    Qty Per Unit: 1
  • 7
    AS-88-C
    $2,101.00
    Qty Per Unit: 1
  • 8
    S-84-D
    $531.00
    Qty Per Unit: 1
  • 9
    S-87-C
    $21.00
    Qty Per Unit: 2
  • 10
    #10R SET
    $19.00
    Qty Per Unit: 2
  • 11
    S-82-A
    $295.00
    Qty Per Unit: 1
  • 12
    1827HB
    $3.00
    Qty Per Unit: 1
  • 13
    1420HS
    $1.00
    Qty Per Unit: 2
  • 14
    14SS
    $1.00
    Qty Per Unit: 2
  • 15
    SA-3
    $36.00
    Qty Per Unit: 1
