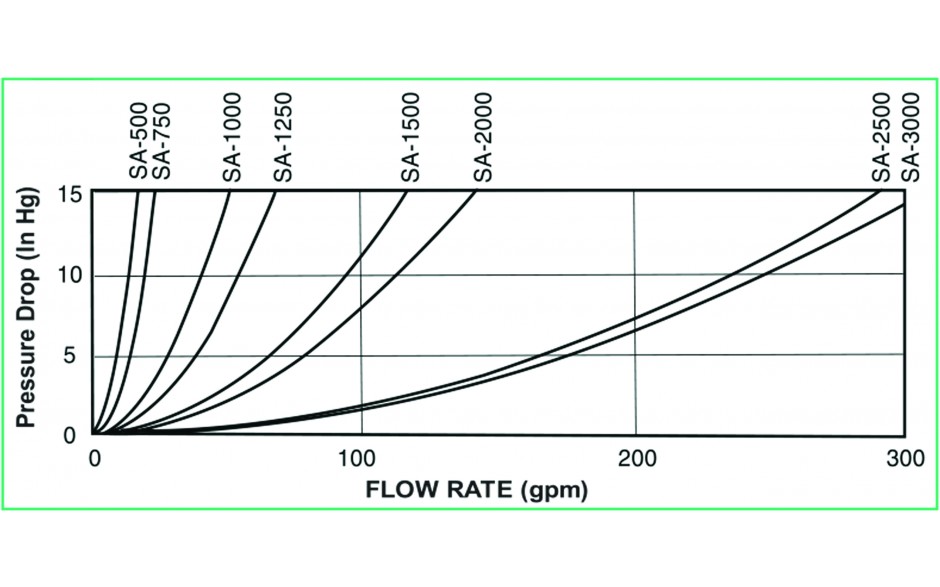

  • flow-chart

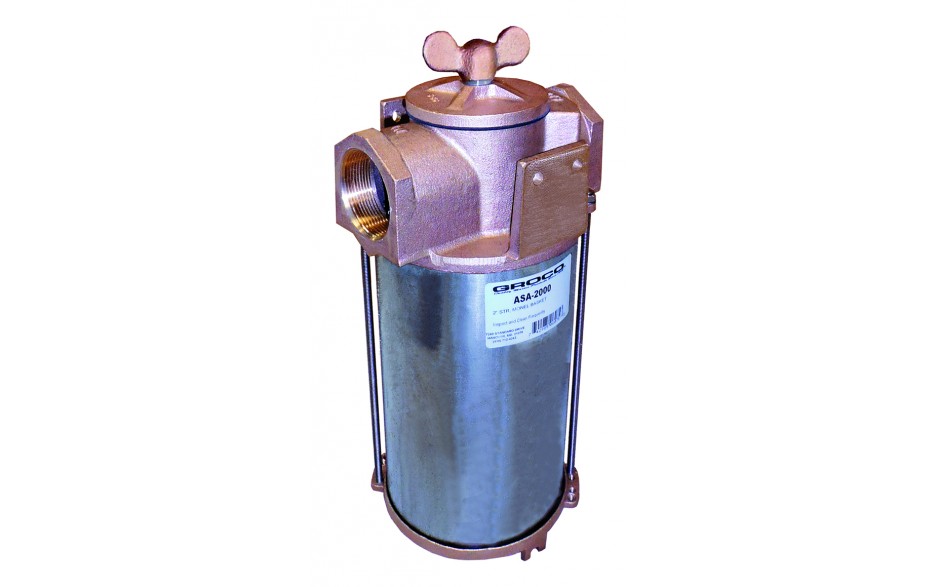

ASA-1000 Series

 1" Raw Water Strainer

 FEATURES

  • Standard with #304 stainless steel filter basket. (Monel is optional)
  • Monel inside tie rod and #316 Stainless Steel outer tie rods.
  • Easy service with spin-off-wingnut.
  • C84400 bronze construction.
  • #316 SS Enclosure for ABS compliance
  • Fine mesh filter baskets are also available.

Additional Information
Spec Sheet No
Thread NPT 1"
Open Area Ratio 29

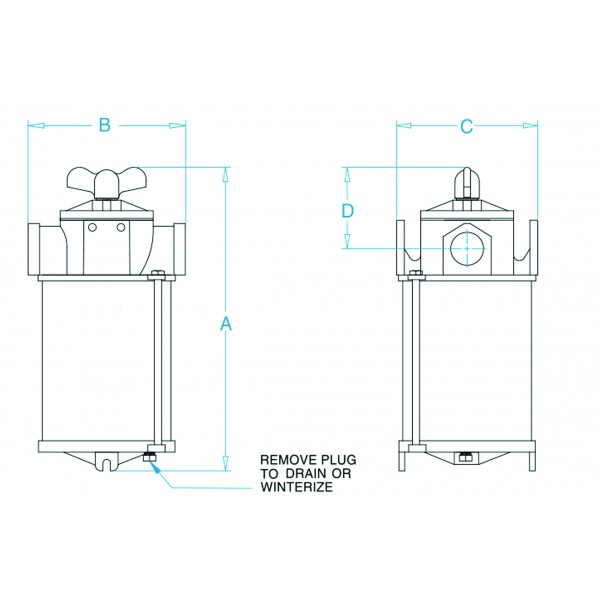

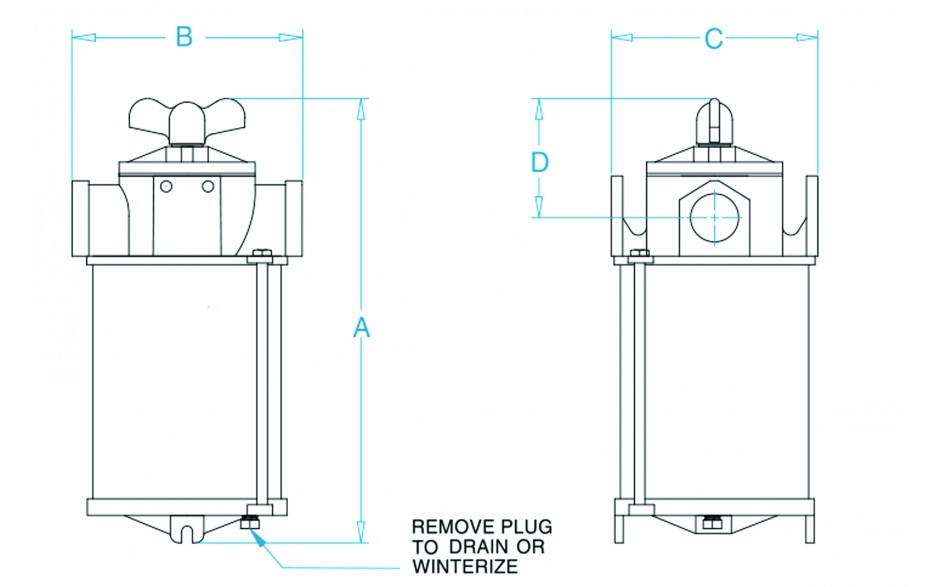

Dimensions
Thread NPT1"
A10.5
B5.5
C5
D2.8
E -
Open Area Ratio29
dimensions image
 Download Image  Open in New Window

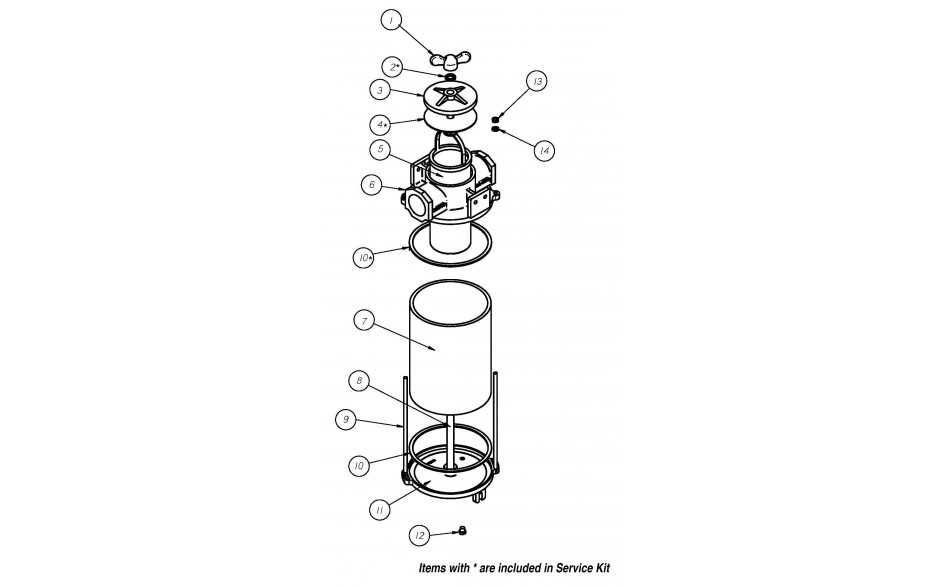

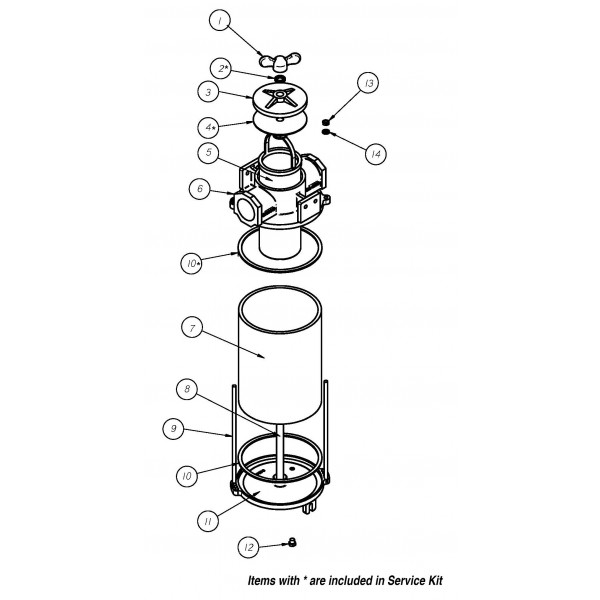

Individual Parts
exploded image
 Download Image  Open in New Window
  • 1
    SVS-5
    $26.00
    Qty Per Unit: 1
  • 2
    500-K
    $1.00
    Qty Per Unit: 1
  • 3
    S-751
    $90.00
    Qty Per Unit: 1
  • 4
    S-751-A
    $4.00
    Qty Per Unit: 1
  • 5
    BP-4
    $68.00
    Qty Per Unit: 1
  • 5
    BS-4
    $71.00
    Qty Per Unit: 1
  • 5
    BM-4
    $202.00
    Qty Per Unit: 1
  • 6
    S-1000-A
    $370.00
    Qty Per Unit: 1
  • 7
    AS-77
    $254.00
    Qty Per Unit: 1
  • 8
    S-72
    $156.00
    Qty Per Unit: 1
  • 9
    S-73-X
    $12.00
    Qty Per Unit: 2
  • 10
    #8R SET
    $19.00
    Qty Per Unit: 2
  • 11
    S-73-A
    $160.00
    Qty Per Unit: 1
  • 12
    1827HB
    $3.00
    Qty Per Unit: 1
  • 13
    1420HS
    $1.00
    Qty Per Unit: 2
  • 14
    14SS
    $1.00
    Qty Per Unit: 2
  • 15
    SA-2
    $36.00
    Qty Per Unit: 1
