AARG Series Bronze Enclosure
THE CONCEPT
For installation on the suction side of engines and pumps in commercial or inspected vessels, GROCO AARG Series raw water strainers are the ideal filtration solution for cooling water intakes for any marine engine, ac unit, or genset. AARG series strainers are designed with a cast bronze cap and enclosure (in place of the molded sight glass) to eliminate plastics in critical plumbing systems. There are no tie rods or gaskets and construction is with bronze head castings plus the choice of flter basket materials - #304 Stainless Steel, Monel, or Non Metallic. ARG strainers are offered in 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", and 3" NPT pipe sizes.
Options include BSPP threaded ports, ABS and USCG compliant bronze enclosures, and #316 Stainless Steel Castings.
FEATURES
- Made in the USA
- ABS Compliant Raw ARG Water Strainer
- Bronze Strainer Cap, Head Casting, Cylinder, and Drain Plug
- Bonding Connection Both Sides
- O-Ring Seal All Joining Surfaces
- Filter Basket Options
- #304 SS (Standard)
- Monel
- Non-Metallic
- NPT or BSPP Threaded Ports
- Improved Basket Design
- C84400 bronze cap, casting, and enclosure.

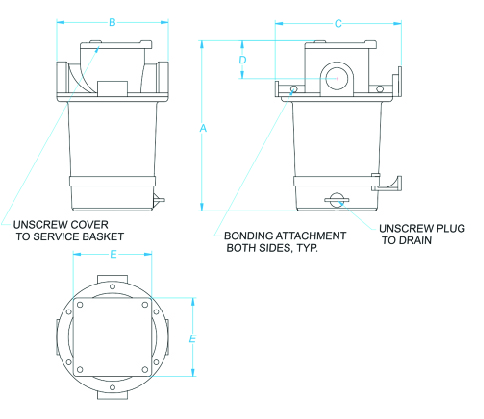

| Product Name | Thread NPT | A | B | C | D | E | Open Area Ratio |
|---|---|---|---|---|---|---|---|
AARG-500 Series |
1/2" | 6.4 | 5.5 | 5.3 | 1.5 | 3.3 | 54 |
AARG-755 Series |
3/4" | 6.4 | 4.5 | 5.3 | 1.5 | 3.3 | 24 |
AARG-750 Series |
3/4" | 8.4 | 4.5 | 5.3 | 1.5 | 3.3 | 36 |
AARG-1000 Series |
1" | 9 | 6.8 | 6.5 | 2 | 4.1 | 28 |
AARG-1210 Series |
1-1/4" | 9.2 | 5.8 | 6.5 | 2.3 | 4.1 | 18 |
AARG-1250 Series |
1-1/4" | 10.6 | 5.8 | 6.5 | 2.3 | 4.1 | 24 |
AARG-1500 Series |
1-1/2" | 11.4 | 8.3 | 7.8 | 2.5 | 5 | 20 |
AARG-2015 Series |
2" | 12 | 7.3 | 7.8 | 2.8 | 5 | 11 |
AARG-2000 Series |
2" | 14 | 7.3 | 7.8 | 2.8 | 5 | 14 |
AARG-2515 Series |
2-1/2" | 12.7 | 8.3 | 7.8 | 3.1 | 5 | 7 |
AARG-2520 Series |
2-1/2" | 14.6 | 8.3 | 7.8 | 3.1 | 5 | 9 |
AARG-2500 Series |
2-1/2" | 17 | 8.3 | 7.8 | 3.1 | 5 | 11 |
AARG-3015 Series |
3" | 13.3 | 7.3 | 7.8 | 3.5 | 5 | 5 |
AARG-3020 Series |
3" | 15.2 | 7.3 | 7.8 | 3.5 | 5 | 6 |
AARG-3025 Series |
3" | 17.4 | 7.3 | 7.8 | 3.5 | 5 | 8 |
AARG-3000 Series |
3" | 19.8 | 7.3 | 7.8 | 3.5 | 5 | 9 |
