THXL Series Extra Long
FEATURES
- Extra long NPSM / NPT Combo thread for thick hull sections
- C83600 Bronze
- Sizes from 3/4" to 2"
- Available with or without nut
- Stainless Steel models available
*** -W suffix means "With Nut" and -L means "Without Nut"

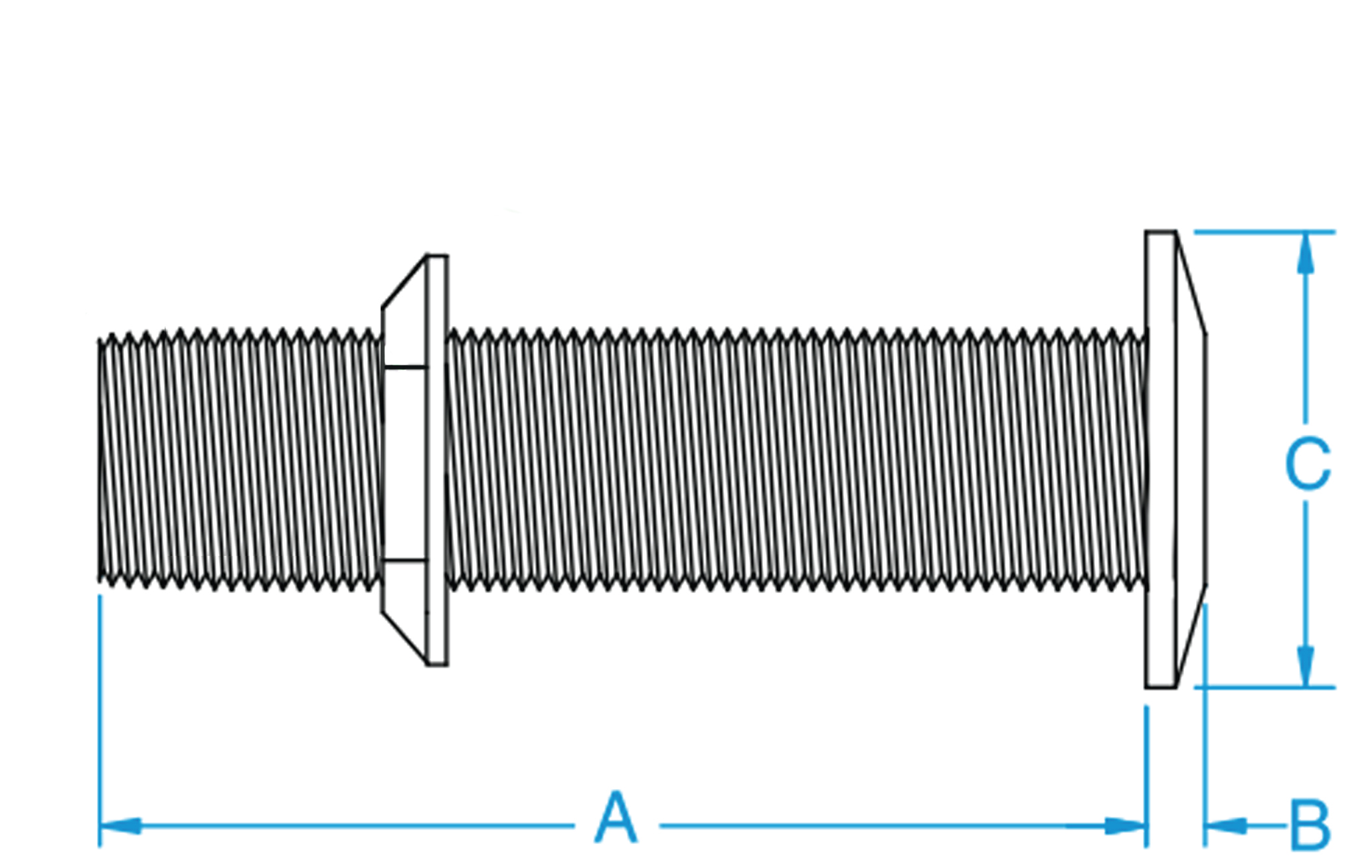

| Product Name | Thread NPS | A | B | C | D |
|---|---|---|---|---|---|
THXL-750-W |
3/4" | 5.33 | 0.3 | 1.9 | - |
THXL-1000-W |
1" | 5.33 | 0.3 | 2.32 | - |
THXL-1250-W |
1-1/4" | 5.45 | 0.3 | 2.62 | - |
THXL-1500-W |
1-1/2" | 5.45 | 0.3 | 2.89 | - |
THXL-2000-W |
2" | 5.58 | 0.3 | 3.34 | - |
THXL-750-L |
3/4" | 5.33 | 0.3 | 1.9 | - |
THXL-1000-L |
1" | 5.33 | 0.3 | 2.32 | - |
THXL-1250-L |
1-1/4" | 5.45 | 0.3 | 2.62 | - |
THXL-1500-L |
1-1/2" | 5.45 | 0.3 | 2.89 | - |
THXL-2000-L |
2" | 5.58 | 0.3 | 3.34 | - |
