HSTH Series High Speed Pickup
FEATURES
- Induces slightly positive pressure while underway but with lower "drag" than STH series
- NPSM thread
- C83600 Bronze
- Sizes from 3/4" to 3"
- Available with or without nut
*** -W suffix means "With Nut" and -L means "Without Nut"

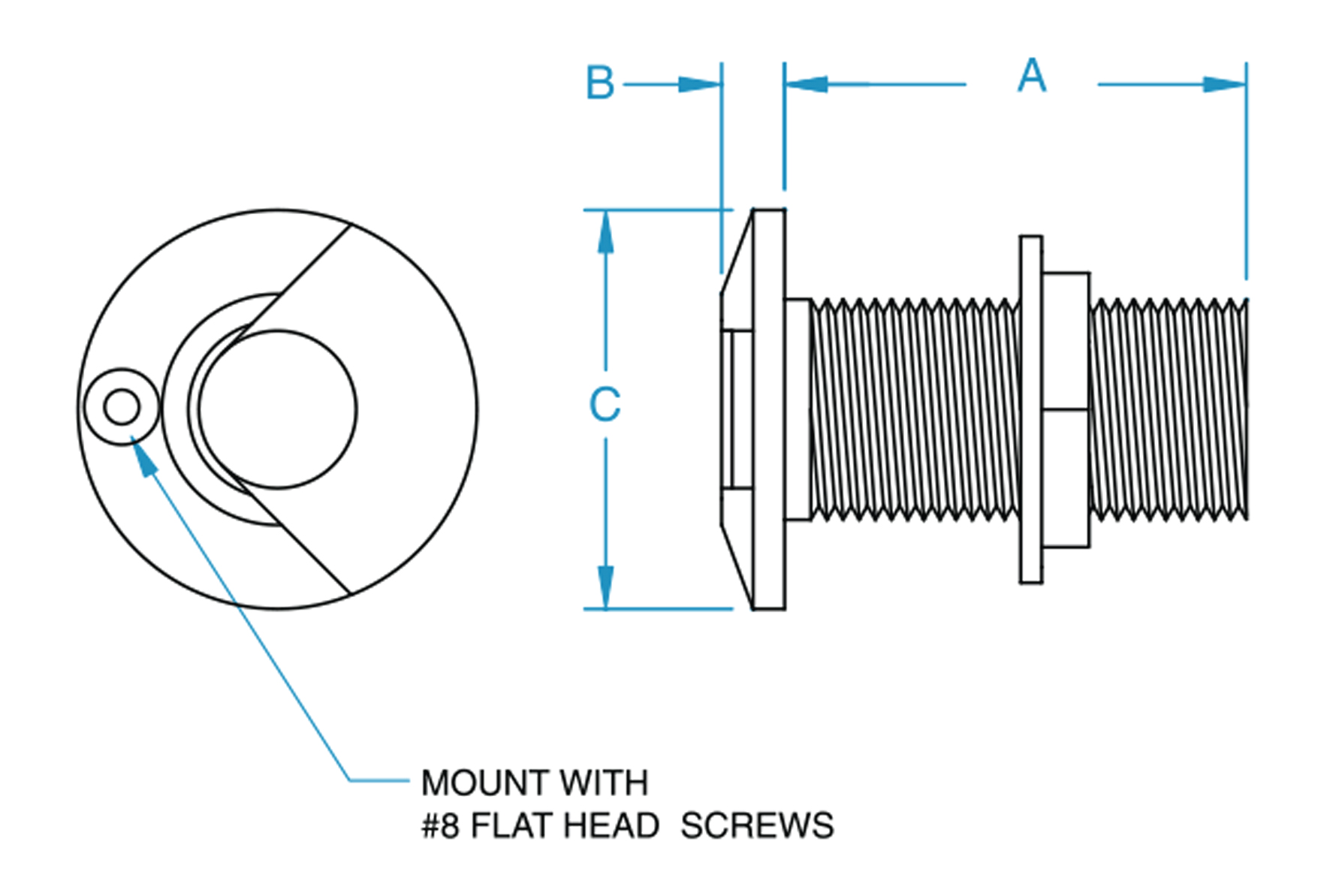

| Product Name | Thread NPS | A | B | C | D |
|---|---|---|---|---|---|
HSTH-750-W |
3/4" | 2.2 | 0.3 | 1.9 | - |
HSTH-1000-W |
1" | 2.85 | 0.3 | 2.32 | - |
HSTH-1250-W |
1-1/4" | 2.9 | 0.3 | 2.62 | - |
HSTH-1500-W |
1-1/2" | 3.15 | 0.3 | 2.89 | - |
HSTH-2000-W |
2" | 3.6 | 0.3 | 3.33 | - |
HSTH-2500-W |
2-1/2" | 3.56 | 0.4 | 4.4 | - |
HSTH-3000-W |
3" | 5 | 0.4 | 5.5 | - |
HSTH-750-L |
3/4" | 2.2 | 0.3 | 1.9 | - |
HSTH-1000-L |
1" | 2.85 | 0.3 | 2.32 | - |
HSTH-1250-L |
1-1/4" | 2.9 | 0.3 | 2.62 | - |
HSTH-1500-L |
1-1/2" | 3.15 | 0.3 | 2.89 | - |
HSTH-2000-L |
2" | 3.6 | 0.3 | 3.33 | - |
HSTH-2500-L |
2-1/2" | 3.56 | 0.4 | 4.4 | - |
HSTH-3000-L |
3" | 5 | 0.4 | 5.5 | - |
HSSLTH-1250-W |
1" | 2.85 | 0.3 | 2.32 | - |
