TP Series FNPS Standard Flow

FEATURES

Standard Flow - the hose ID that fits is the same as the pipe size (ie: TP-750 has 3/4" NPSM threads and accepts 3/4" ID hose)
Female NPS x Hose barb
C84400 Bronze - not compliant with NSF-61 lead-free standard. DO NOT use in potable water systems
Sizes from 3/4" to 2-1/2"
*Sizes 2" & 2-1/2" come in two pieces.

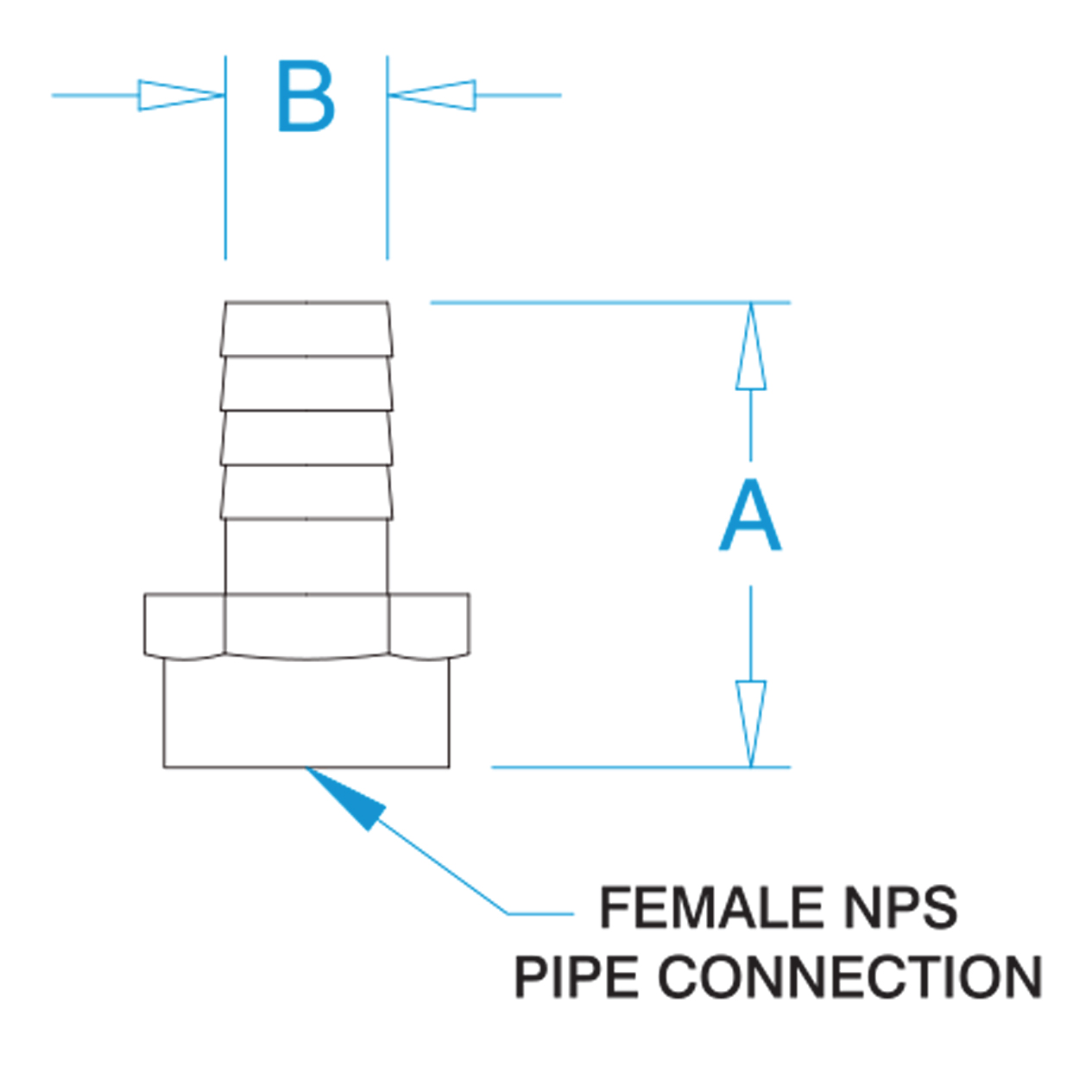

Product Name	Thread NPS	Thread NPT	A	B
TP-750	3/4"	-	2.13	3/4"
TP-1000	1"	-	2.13	1"
TP-1250	1-1/4"	-	2.75	1-1/4"
TP-1500	1-1/2"	-	2.75	1-1/2"
TP-2000	2"	-	2.5	2"
TP-2500	2-1/2"	-	2.5	2-1/2"

TP-750
