PTH-S Series Stainless NPT Standard Flow
FEATURES
- Standard Flow - the hose ID that fits is the same as the pipe size (ie: PTH-750-S has 3/4" NPT threads and accepts 3/4" ID hose)
- #316 Stainless Steel - NSF-61 compliant and suitable for use in potable water systems
- Sizes from 1/2" to 3"
- UL listed 647B

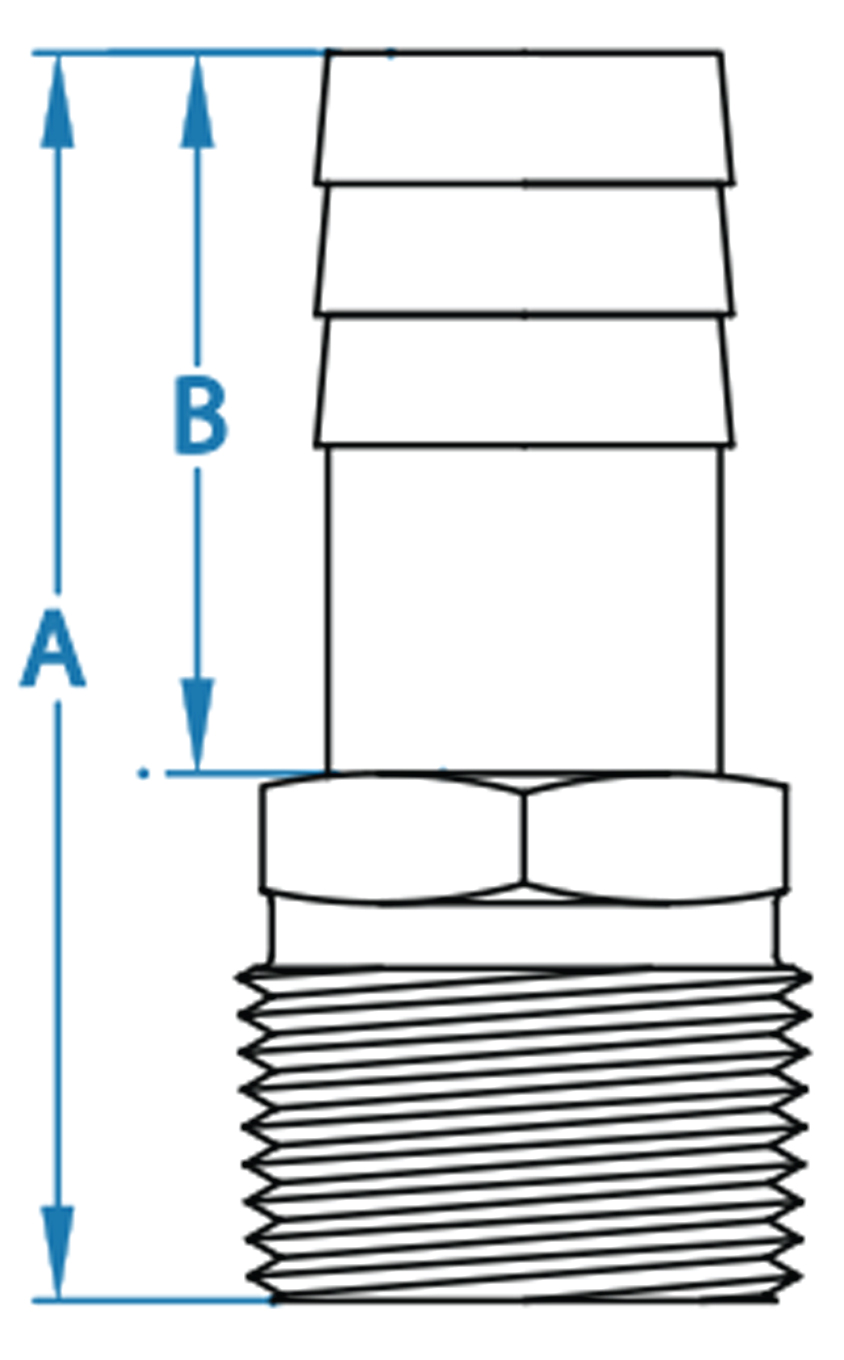

| Product Name | Thread NPT | Hose ID (in) | A | B | C |
|---|---|---|---|---|---|
PTH-1250-S |
1-1/4" | 1-1/4" | 3.35 | 2.1 | - |
PTH-1500-S |
1-1/2" | 1-1/2" | 3.54 | 2.2 | - |
PTH-2000-S |
2" | 2" | 3.94 | 2.6 | - |
PTH-750-S |
3/4" | 3/4" | 2.56 | 1.5 | - |
PTH-1000-S |
1" | 1" | 2.95 | 1.7 | - |
PTH-2500-S |
2-1/2" | 2-1/2" | 4.73 | 2.8 | - |
PTH-3000-S |
3" | 3" | 5.12 | 3.2 | - |
