PTHC Series BSPP Standard Flow
FEATURES
- British Standard Pipe Parallel (BSPP) Thread
- 90 degree Male BSPP x Hose connection
- C83600 Bronze
- Sizes from 1/2" to 4"
- Standard Flow
- ISO 9093-1 Certified
- Note- C83600 bronze fittings are not in compliance with NSF-61 and therefore are not intended for use in potable water systems.

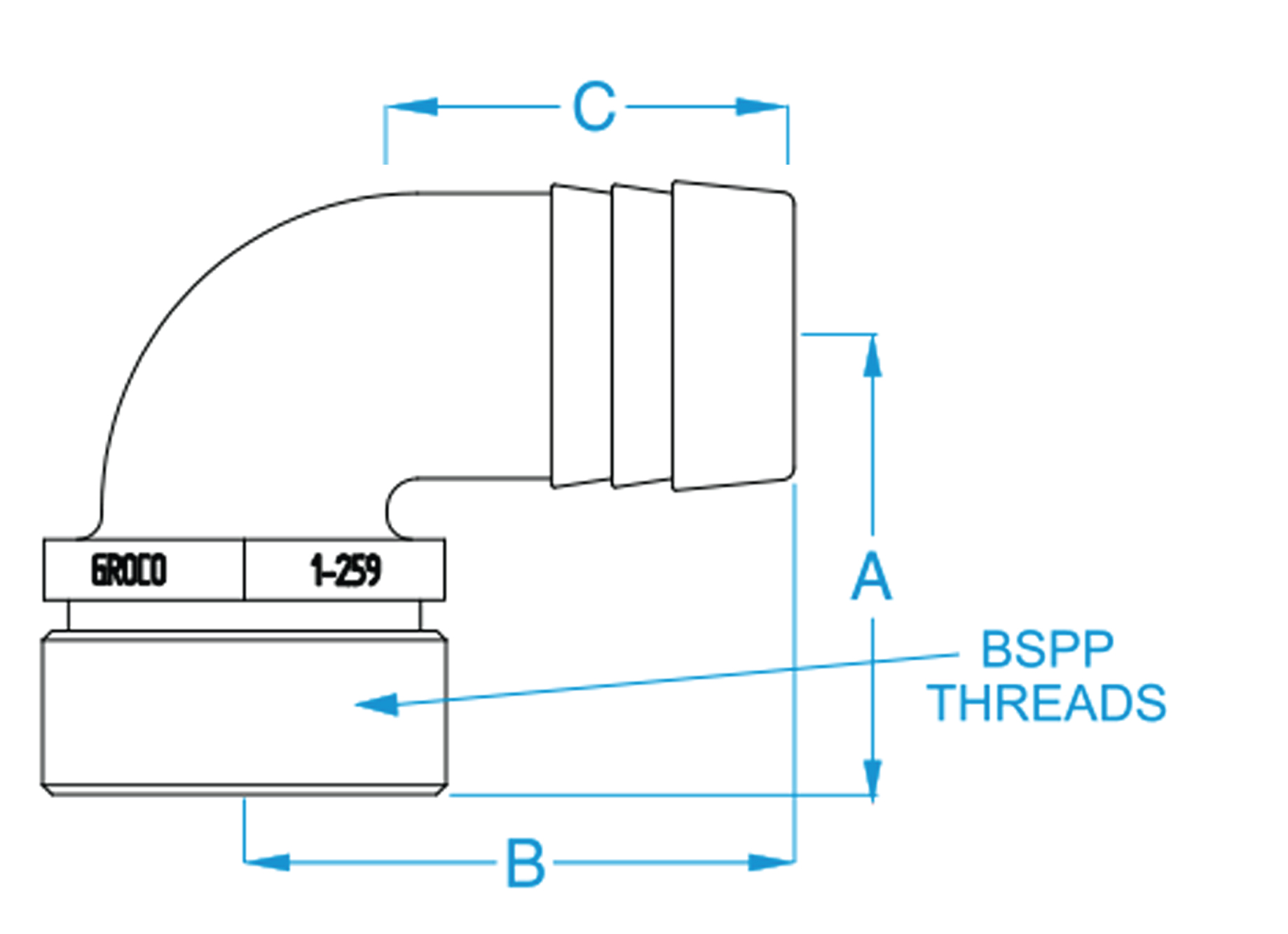

| Product Name | Thread BSPP | Hose ID (mm) | A | B | C |
|---|---|---|---|---|---|
PTHC-12PD12 |
G 1/2" | 12 | 30.5 | 37.8 | 31 |
PTHC-34PD20 |
G 3/4" | 20 | 32.5 | 48.8 | 37 |
PTHC-1PD25 |
G 1" | 25 | 37.8 | 45.3 | 45.3 |
PTHC-114PD32 |
G 1-1/4" | 32 | 57 | 60.8 | 43 |
PTHC-112PD40 |
G 1-1/2" | 40 | 58.1 | 69.8 | 48 |
PTHC-2PD50 |
G 2" | 50 | 67 | 81.5 | 81.5 |
PTHC-212PD60 |
G 2-1/2" | 60 | 71.8 | 91.5 | 91.5 |
PTHC-3PD75 |
G 3" | 75 | 100.9 | 89 | 89 |
PTHC-4PD100 |
G 4" | 100 | 128.3 | 133.4 | 133.4 |
