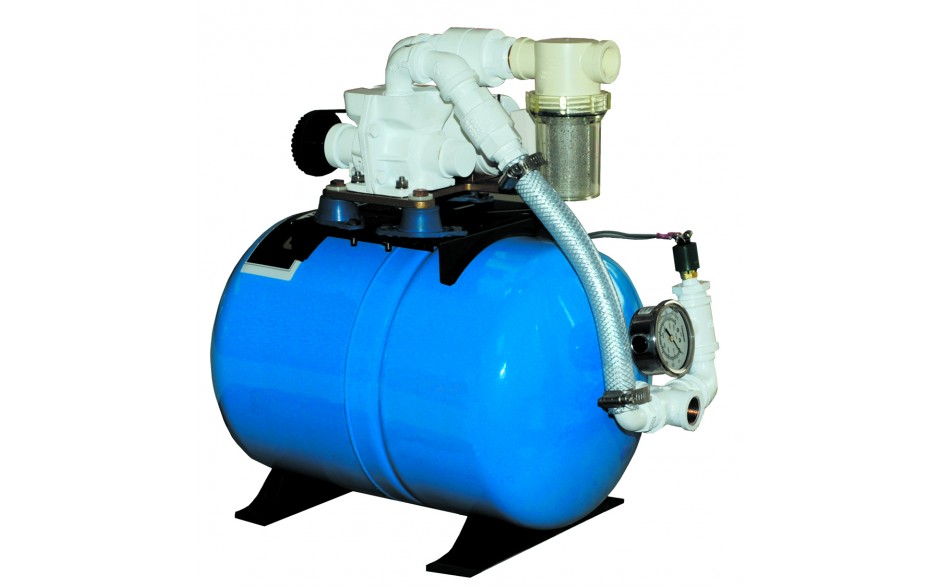

PJR-B 24V

Water Pressure System for Yachts under 50ft

Features:

  • Max 7 GPM.
  • Operating pressure range 20-40 PSI.
  • Intended for yachts 50ft and smaller.
  • Complies with NSF-61 low-lead standard.
  • Compact and powerful 2-stage rotary pump.
  • Pressure gauge and 3/4" strainer included.
  • Patented NOFLO;Dry-run protection.
  • NOTE : Pressure storage tank is required for water pressure system application.

Additional Information
Yacht Size Up to 50’
Pressure Range 20-40
Max GPM 7
Pressure Storage Tank Included 2-Gallon
Self Priming Yes
Breaker DC 20 amp
Dimensions
Yacht SizeUp to 50’
Pressure Range20-40
Max GPM7
Pressure Storage Tank Included2-Gallon
Self PrimingYes
Breaker DC20 amp

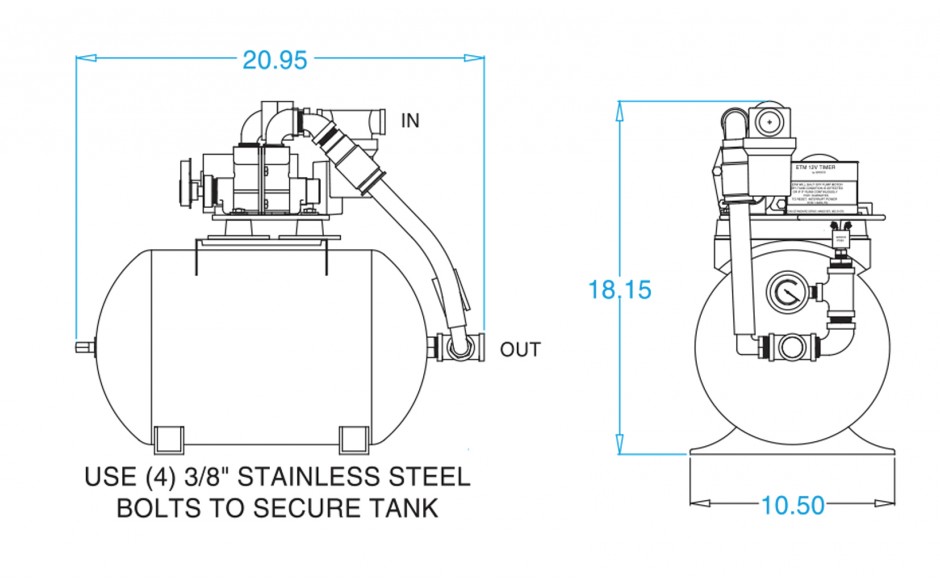

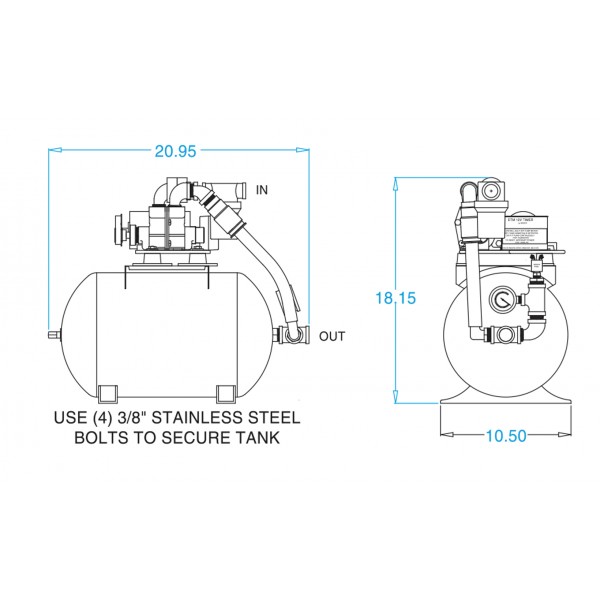

dimensions image
 Download Image  Open in New Window

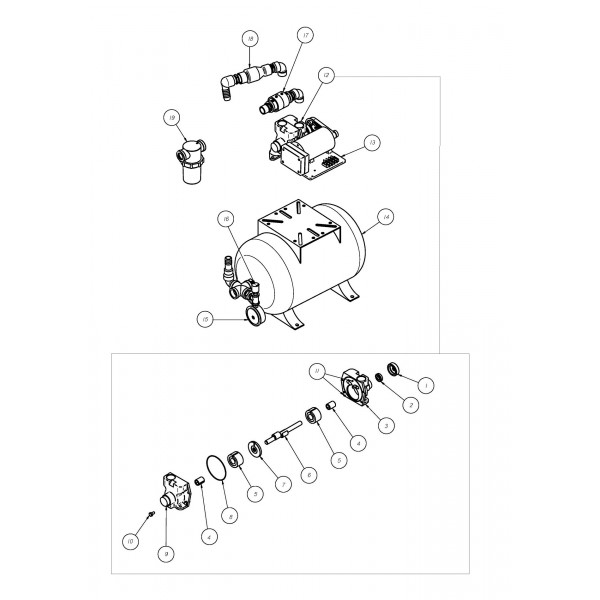

Individual Parts
exploded image
 Download Image  Open in New Window
  • 1
    P-9020-C
    $37.00
    Qty Per Unit: 1
  • 1
    P-9020-A (2003 & before)
    $999,999.00
    Qty Per Unit: 1
  • 2
    P-9015
    $8.00
    Qty Per Unit: 2
  • 3
    P-9001-B
    $636.00
    Qty Per Unit: 1
  • 4
    P-9009-A
    $77.00
    Qty Per Unit: 2
  • 5
    P-9014 set
    $251.00
    Qty Per Unit: 1
  • 6
    P-9003/4 ASSY
    $205.00
    Qty Per Unit: 1
  • 7
    P-9006
    $67.00
    Qty Per Unit: 1
  • 8
    2-042
    $2.00
    Qty Per Unit: 1
  • 9
    P-9002
    $999,999.00
    Qty Per Unit: 1
  • 10
    1428X12HS
    $1.00
    Qty Per Unit: 4
  • 11
    PIN-21
    $2.00
    Qty Per Unit: 2
  • 12
    P-9000
    $1,561.00
    Qty Per Unit: 1
  • 13
    P-8004-A
    $145.00
    Qty Per Unit: 1
  • 15
    P-8005-B
    $75.00
    Qty Per Unit: 1
  • 16
    IPS-38
    $156.00
    Qty Per Unit: 1
  • 17
    NOFLO7500
    $201.00
    Qty Per Unit: 1
  • 18
    CV-75-P
    $76.00
    Qty Per Unit: 1
  • 20
    PJR REGULAR
    $59.00
    Qty Per Unit: 1
  • 21
    PJR MASTER
    $774.00
    Qty Per Unit: 1
