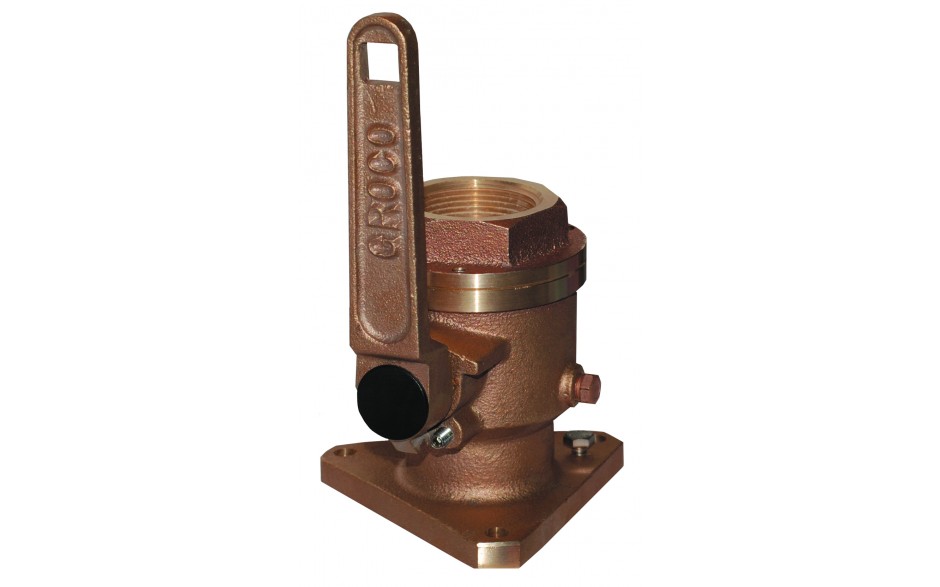

BV-750 test

  • Includes one grease zerk fitting for lubrication (use only with the valve in the open position), and one drain plug. The zerk can also be used for draining.
  • Tri-flange base and mount hole pattern provide easy retrofit when replacing most popular brands.
  • Patented selectable handle rotation.
  • Handle has square hole to accept standard ratchet to help reach valves in hard-to-reach locations and ease actuation of difficult to operate valves.
  • Full flow.
  • Stainless steel ball and stem.
  • PTFE seats and seals.
  • Serviceable while installed.
  • Base has bonding attachment.
  • UL Listed 647B

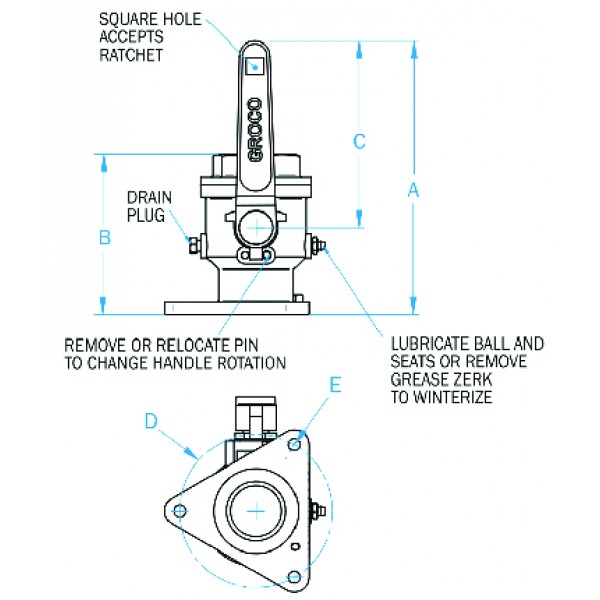

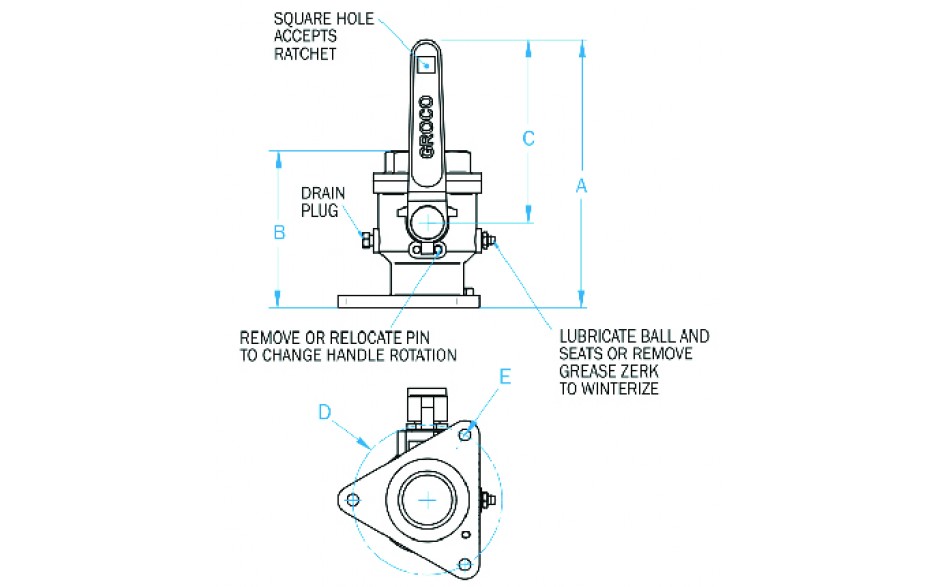

Dimensions
Thread Bottom NPSNo
Thread Top NPTNo
A5.75 in.
B3.5 in.
C3.8 in.
D3.12 in.
E5/16 in.

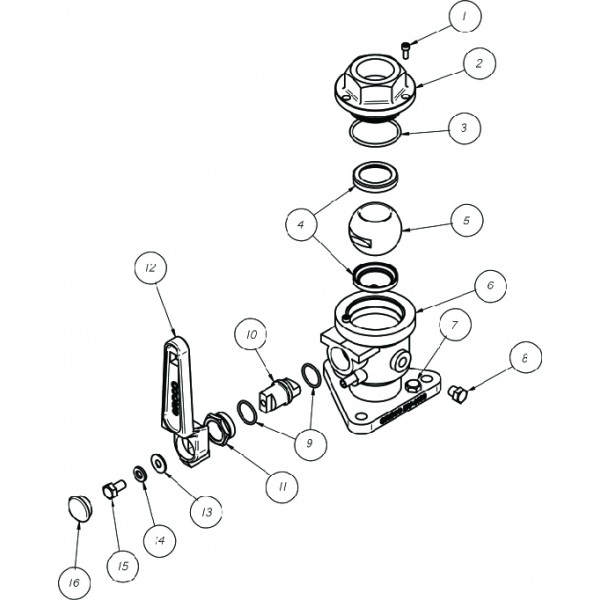

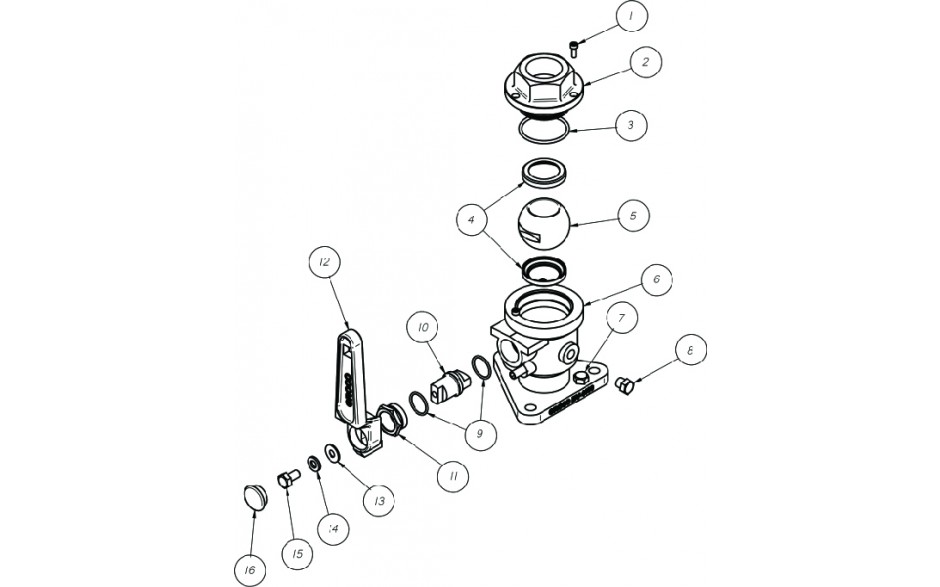

Individual Parts
  • 2
    BV-756
    $12.00
    Qty Per Unit: 1
  • 3
    2-122
    $1.00
    Qty Per Unit: 5
  • 4
    BV-752
    $66.00
    Qty Per Unit: 2
  • 5
    BV-754
    $42.00
    Qty Per Unit: 2
  • 6
    BV-750-BT
    $234.00
    Qty Per Unit: 1
  • 8
    1827HB
    $3.00
    Qty Per Unit: 1
