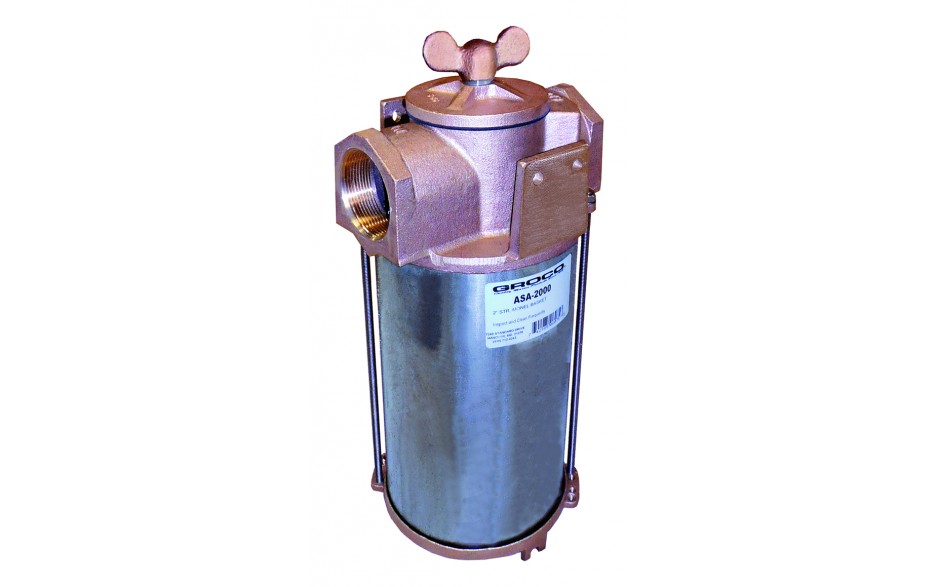

ASA-2000 Series

 2" Raw Water Strainer

 FEATURES

  • Standard with #304 stainless steel filter basket. (Monel is optional)
  • Monel inside tie rod and #316 Stainless Steel outer tie rods.
  • Easy service with spin-off-wingnut.
  • C84400 bronze construction.
  • #316 SS Enclosure for ABS compliance
  • Fine mesh filter baskets are also available.

Additional Information
Spec Sheet No
Thread NPT 2"
Open Area Ratio 14
Dimensions
Thread NPT2"
A16.5
B6.8
C6.3
D3.5
E -
Open Area Ratio14
dimensions image
 Download Image  Open in New Window
Individual Parts
exploded image
 Download Image  Open in New Window
  • 1
    S-75
    $40.00
    Qty Per Unit: 1
  • 2
    504-F
    $1.00
    Qty Per Unit: 1
  • 3
    S-86
    $117.00
    Qty Per Unit: 1
  • 4
    S-86-A
    $4.00
    Qty Per Unit: 1
  • 5
    BS-8
    $98.00
    Qty Per Unit: 1
  • 5
    BM-8
    $345.00
    Qty Per Unit: 1
  • 5
    BP-8
    $93.00
    Qty Per Unit: 1
  • 6
    S-2000-A
    $901.00
    Qty Per Unit: 1
  • 7
    AS-88-A
    $1,458.00
    Qty Per Unit: 1
  • 8
    S-84-A
    $400.00
    Qty Per Unit: 1
  • 9
    S-87-A
    $16.00
    Qty Per Unit: 2
  • 10
    #10R SET
    $19.00
    Qty Per Unit: 2
  • 11
    S-82-A
    $295.00
    Qty Per Unit: 1
  • 12
    1827HB
    $3.00
    Qty Per Unit: 1
  • 13
    1420HS
    $1.00
    Qty Per Unit: 2
  • 14
    14SS
    $1.00
    Qty Per Unit: 2
  • 15
    SA-3
    $36.00
    Qty Per Unit: 1
