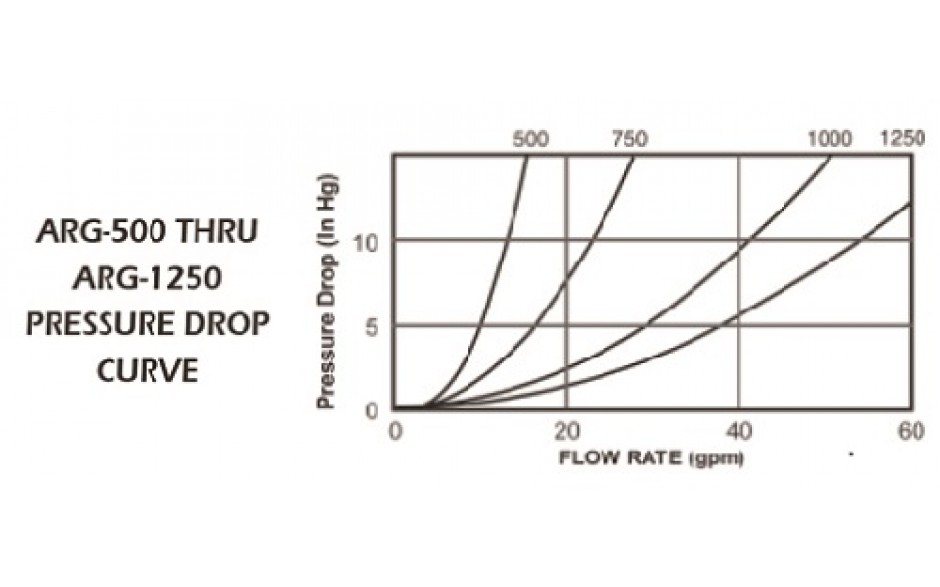

  • flow-chart

ARG-500 Series

1/2" Raw Water Strainer

Features:

  • Mounting System Allows Removal Without Tools
  • Bonding Connection Both Sides
  • O-Ring Seal All Joining Surfaces
  • Filter Basket Options
    • #304 SS (Standard)
    • Monel
    • Non-Metallic
  • One-Piece Molded Sight Glass Eliminates Tie Rods and Gaskets
  • Improved Drain Plug
  • Non-Metallic Cap Magnifies Internal Viewing
  • NPT or BSPP Threaded Ports
  • Improved Basket Design
  • C84400 bronze head casting
  • UL Listed 255-D

Additional Information
Spec Sheet No
Thread NPT 1/2"
Open Area Ratio 54
Dimensions
Thread NPT1/2"
A6.4
B5.5
C5.3
D1.5
E -
Open Area Ratio54
dimensions image
 Download Image  Open in New Window

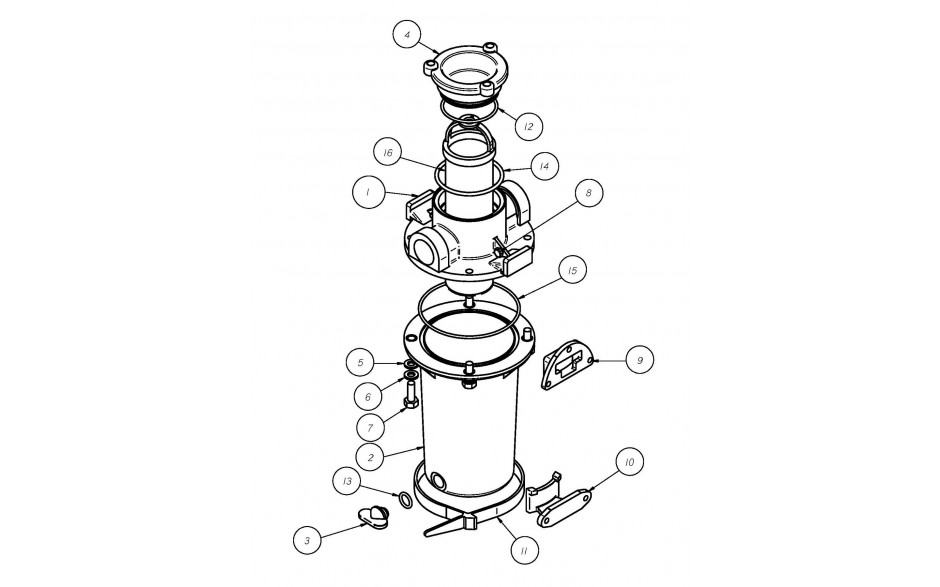

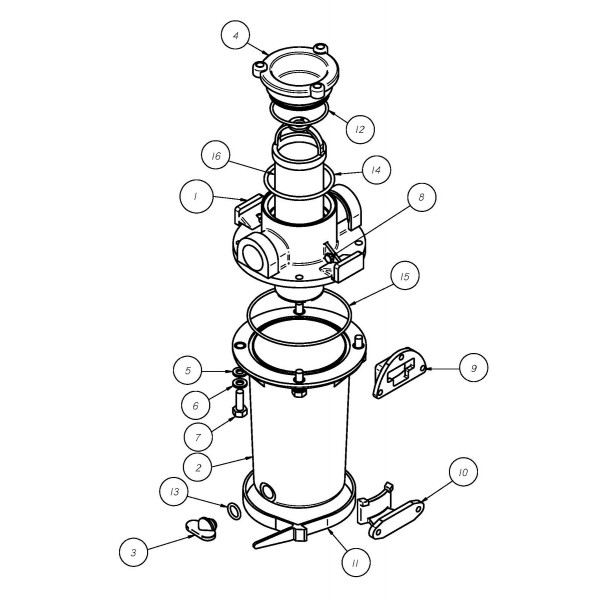

Individual Parts
exploded image
 Download Image  Open in New Window
  • 1
    ARG-510-H
    $341.00
    Qty Per Unit: 1
  • 2
    ARG-503
    $67.00
    Qty Per Unit: 1
  • 3
    ARG-756
    $6.00
    Qty Per Unit: 1
  • 4
    ARG-501-PC
    $25.00
    Qty Per Unit: 1
  • 5
    PFW-2 SET
    $5.00
    Qty Per Unit: 1
  • 6
    14SS
    $1.00
    Qty Per Unit: 4
  • 7
    1420X34HS
    $1.00
    Qty Per Unit: 4
  • 8
    1024X14HB
    $3.00
    Qty Per Unit: 2
  • 9
    ARG-505
    $10.00
    Qty Per Unit: 1
  • 10
    ARG-504
    $12.00
    Qty Per Unit: 1
  • 11
    ARG-502
    $8.00
    Qty Per Unit: 1
  • 12
    2-228
    $2.00
    Qty Per Unit: 1
  • 13
    2-011 (2008 & Older)
    $1.00
    Qty Per Unit: 1
  • 13
    2-111
    $1.00
    Qty Per Unit: 1
  • 14
    2-135
    $1.00
    Qty Per Unit: 1
  • 15
    2-153
    $3.00
    Qty Per Unit: 1
  • 16
    BP-1
    $55.00
    Qty Per Unit: 1
  • 16
    BS-1
    $62.00
    Qty Per Unit: 1
  • 16
    BM-1
    $126.00
    Qty Per Unit: 1
  • 17
    ARG-1
    $22.00
    Qty Per Unit: 1
