ARG-2000-S

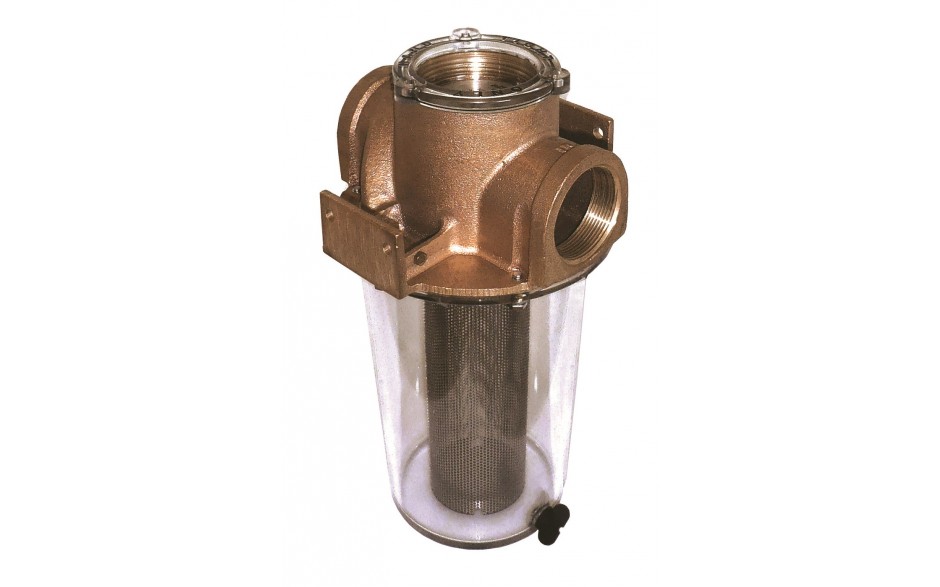

2" Raw Water Strainer with #304 SS Basket

Features:

  • Mounting System Allows Removal Without Tools
  • Bonding Connection Both Sides
  • O-Ring Seal All Joining Surfaces
  • Filter Basket Options
    • #304 SS (Standard)
    • Monel
    • Non-Metallic
  • One-Piece Molded Sight Glass Eliminates Tie Rods and Gaskets
  • Improved Drain Plug
  • Non-Metallic Cap Magnifies Internal Viewing
  • NPT or BSPP Threaded Ports
  • Improved Basket Design
  • C84400 bronze head casting
  • UL Listed 255-D

Additional Information
Spec Sheet No
Basket Type #304 Stainless Steel (-S Suffix)
Thread NPT 2"
Open Area Ratio 14
Dimensions
Thread NPT2"
A14
B7.3
C7.8
D2.8
E -
Open Area Ratio14
dimensions image
 Download Image  Open in New Window

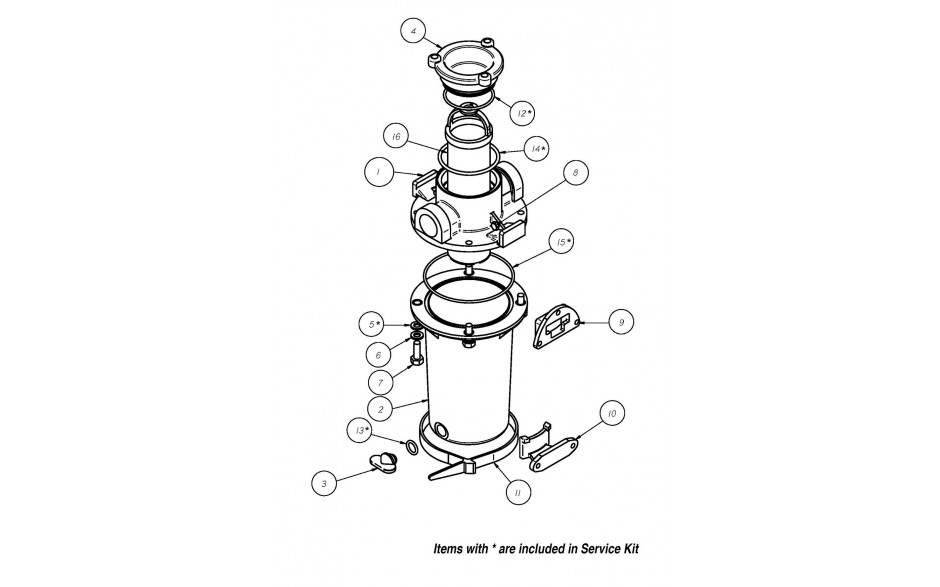

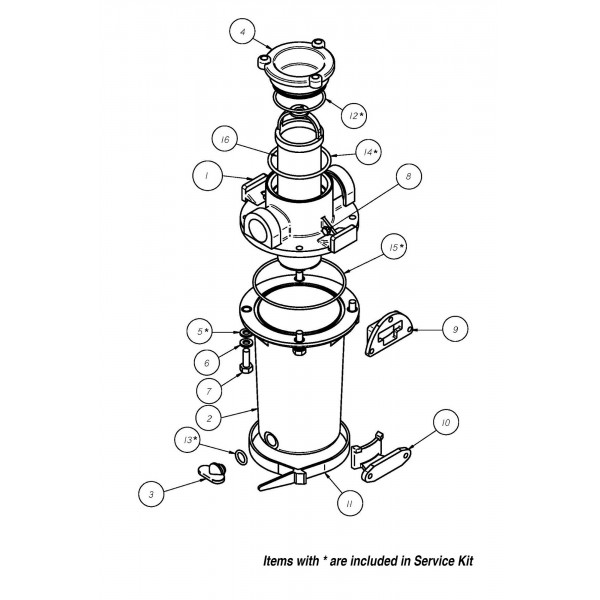

Individual Parts
exploded image
 Download Image  Open in New Window
  • 2
    ARG-2003
    $166.00
    Qty Per Unit: 1
  • 3
    ARG-756
    $6.00
    Qty Per Unit: 1
  • 4
    ARG-1501-PC
    $45.00
    Qty Per Unit: 1
  • 5
    PFW-2 SET
    $5.00
    Qty Per Unit: 1
  • 6
    14SS
    $1.00
    Qty Per Unit: 6
  • 7
    1420X34HS
    $1.00
    Qty Per Unit: 6
  • 8
    1024X14HB
    $3.00
    Qty Per Unit: 2
  • 10
    ARG-1504
    $46.00
    Qty Per Unit: 1
  • 11
    ARG-1502
    $9.00
    Qty Per Unit: 1
  • 12
    2-234
    $3.00
    Qty Per Unit: 1
  • 13
    2-111
    $1.00
    Qty Per Unit: 1
  • 13
    2-011 (2008 & Older)
    $1.00
    Qty Per Unit: 1
  • 14
    2-238
    $3.00
    Qty Per Unit: 1
  • 15
    2-256
    $4.00
    Qty Per Unit: 1
  • 16
    BS-8
    $98.00
    Qty Per Unit: 1
  • 17
    ARG-3
    $26.00
    Qty Per Unit: 1
