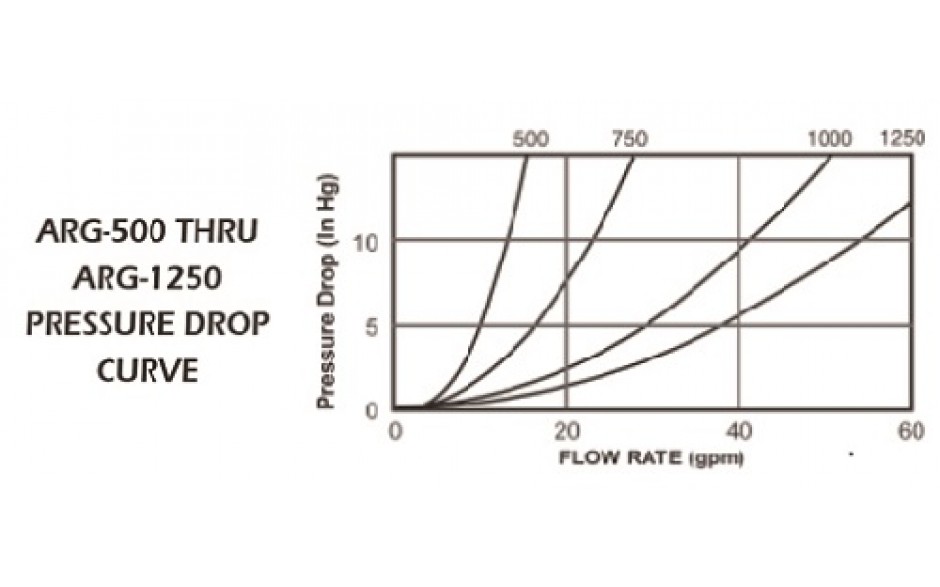

  • flow-chart

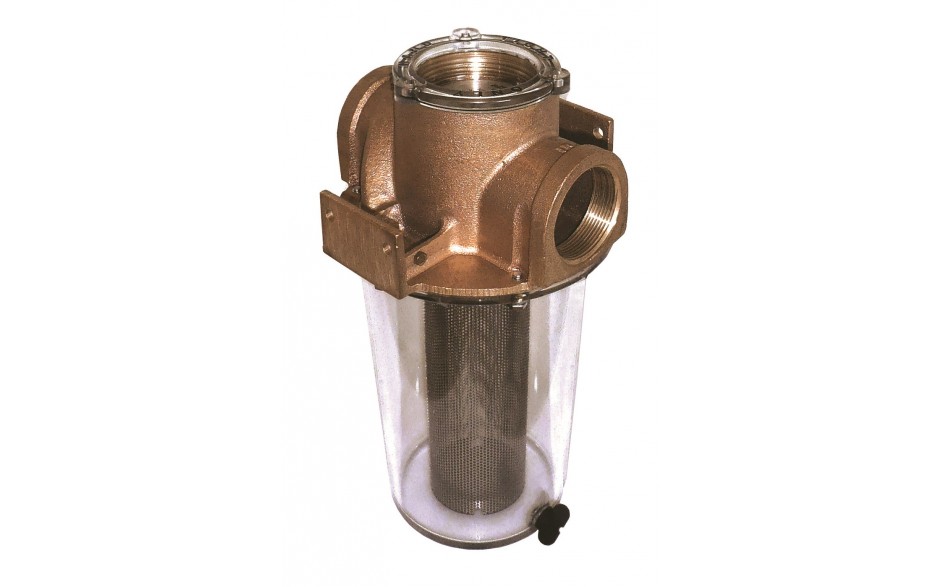

ARG-1000 Series

1" Raw Water Strainer

Features:

  • Mounting System Allows Removal Without Tools
  • Bonding Connection Both Sides
  • O-Ring Seal All Joining Surfaces
  • Filter Basket Options
    • #304 SS (Standard)
    • Monel
    • Non-Metallic
  • One-Piece Molded Sight Glass Eliminates Tie Rods and Gaskets
  • Improved Drain Plug
  • Non-Metallic Cap Magnifies Internal Viewing
  • NPT or BSPP Threaded Ports
  • Improved Basket Design
  • C84400 bronze head casting
  • UL Listed 255-D

Additional Information
Spec Sheet No
Thread NPT 1"
Open Area Ratio 28

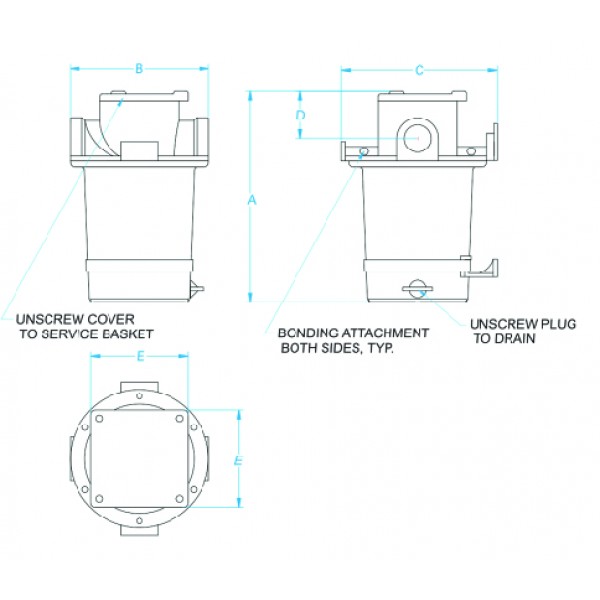

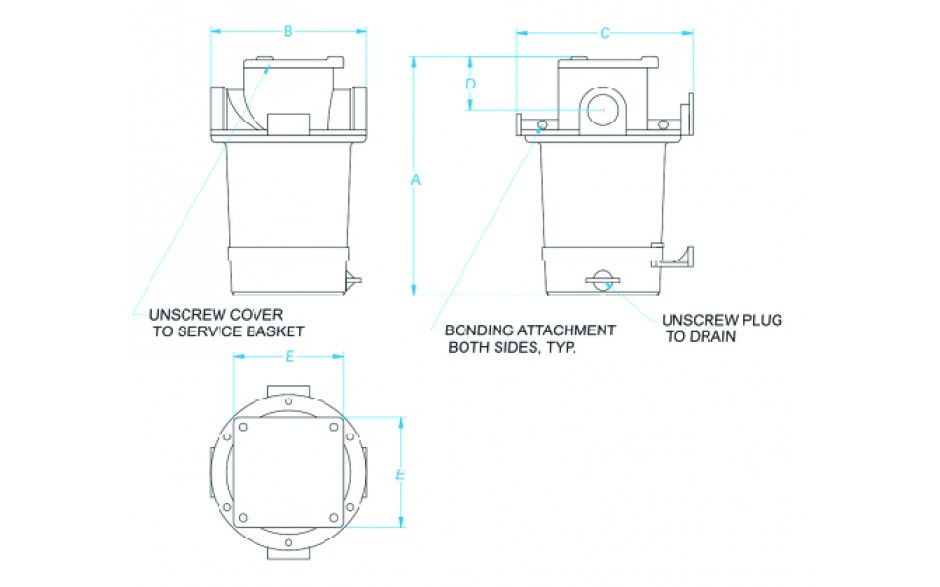

Dimensions
Thread NPT1"
A9
B6.8
C6.5
D2
E -
Open Area Ratio28
dimensions image
 Download Image  Open in New Window

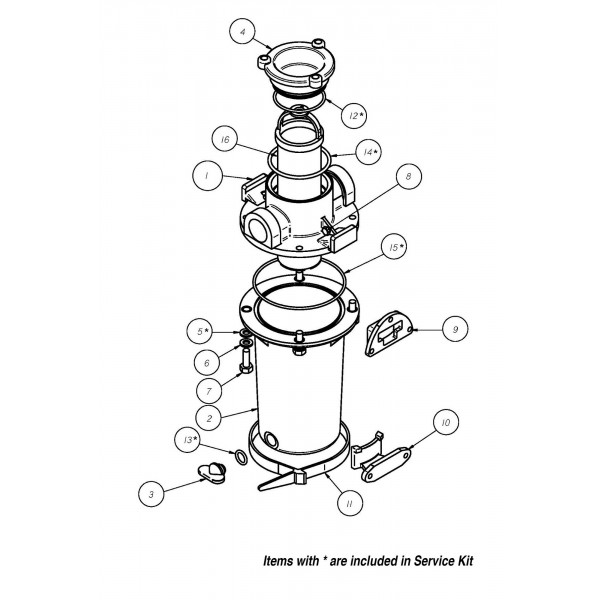

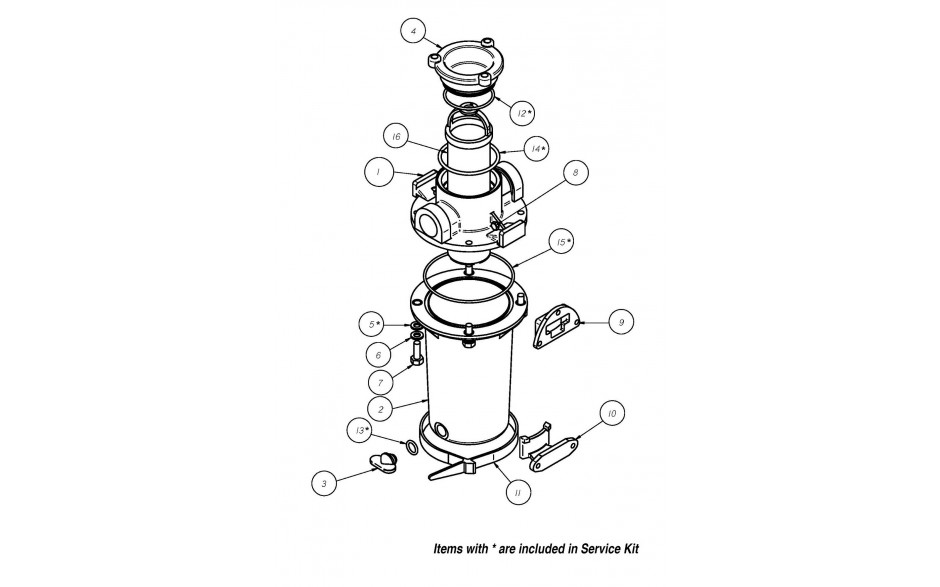

Individual Parts
exploded image
 Download Image  Open in New Window
  • 1
    ARG-1010-H
    $492.00
    Qty Per Unit: 1
  • 2
    ARG-1003
    $90.00
    Qty Per Unit: 1
  • 3
    ARG-756
    $6.00
    Qty Per Unit: 1
  • 4
    ARG-1001-PC
    $36.00
    Qty Per Unit: 1
  • 5
    PFW-2 SET
    $5.00
    Qty Per Unit: 1
  • 6
    14SS
    $1.00
    Qty Per Unit: 6
  • 7
    1420X34HS
    $1.00
    Qty Per Unit: 6
  • 8
    1024X14HB
    $3.00
    Qty Per Unit: 2
  • 9
    ARG-1005
    $17.00
    Qty Per Unit: 1
  • 10
    ARG-1004
    $27.00
    Qty Per Unit: 1
  • 11
    ARG-502
    $8.00
    Qty Per Unit: 1
  • 12
    2-232
    $2.00
    Qty Per Unit: 1
  • 13
    2-011 (2008 & Older)
    $1.00
    Qty Per Unit: 1
  • 13
    2-111
    $1.00
    Qty Per Unit: 1
  • 14
    2-229
    $2.00
    Qty Per Unit: 1
  • 15
    2-157
    $3.00
    Qty Per Unit: 1
  • 16
    BP-3
    $69.00
    Qty Per Unit: 1
  • 16
    BS-3
    $73.00
    Qty Per Unit: 1
  • 16
    BM-3
    $204.00
    Qty Per Unit: 1
  • 17
    ARG-2
    $23.00
    Qty Per Unit: 1
