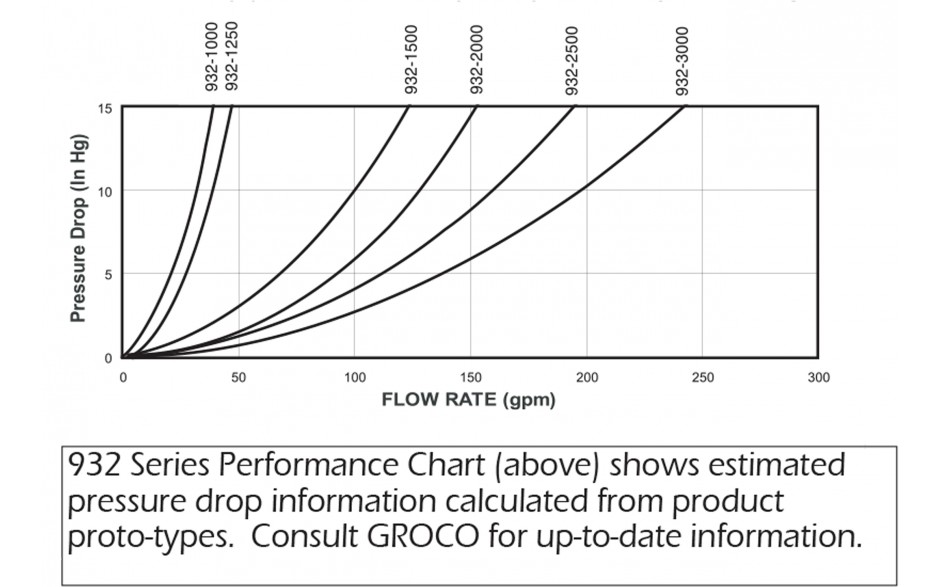

  • flow-chart

932-1500 Series

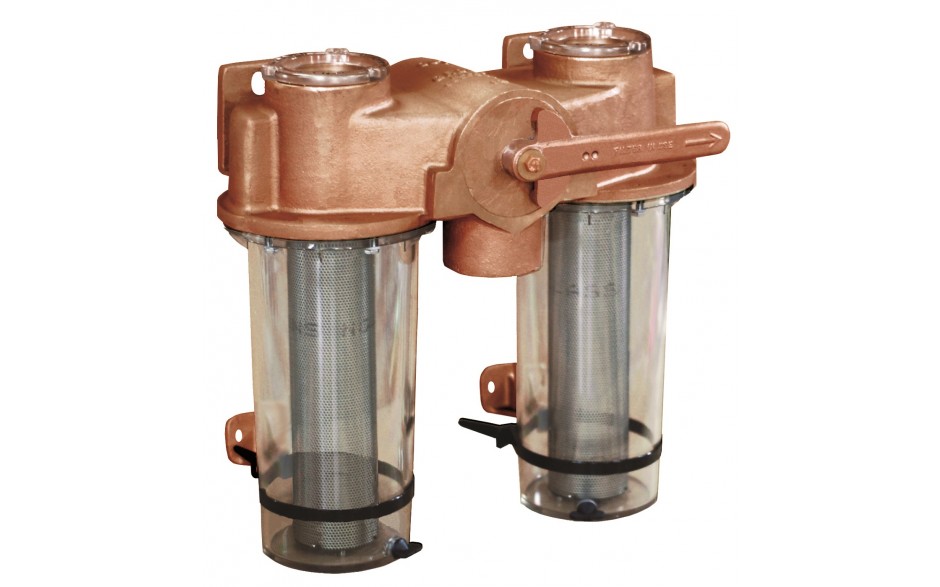

1-1/2" Duplex Strainer

 FEATURES

  • No tie rods or gaskets.
  • Easy service with screw-on cap.
  • Patent-pending valve handle has square hole to accept a standard ratchet for improved leverage or greater access.
  • C84400 bronze construction.
  • #304 stainless steel filter baskets are standard
  • Monel basket available.
  • ABS Compliant version available with bronze enclosures. 933 Series.

Additional Information
Spec Sheet No
Thread NPT 1-1/2"
Open Area Ratio 20

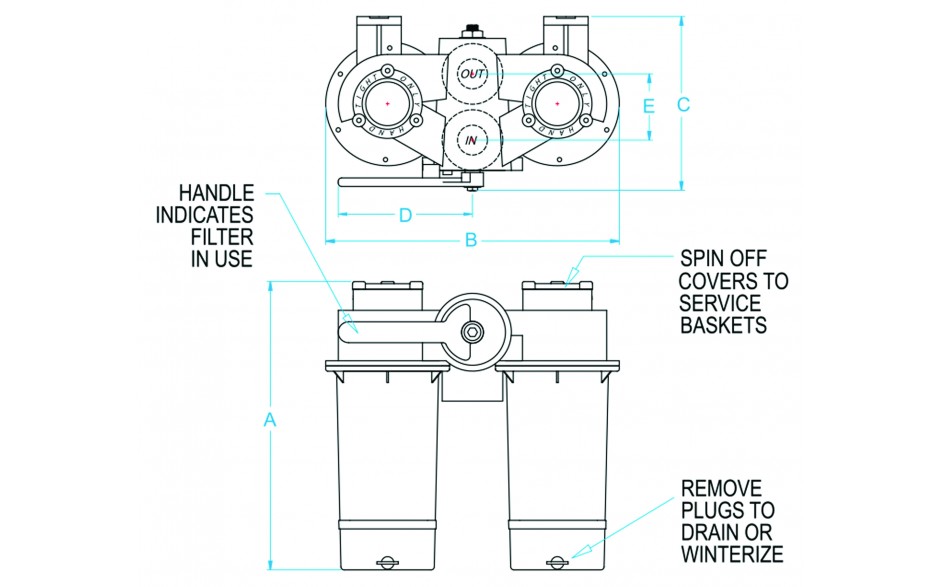

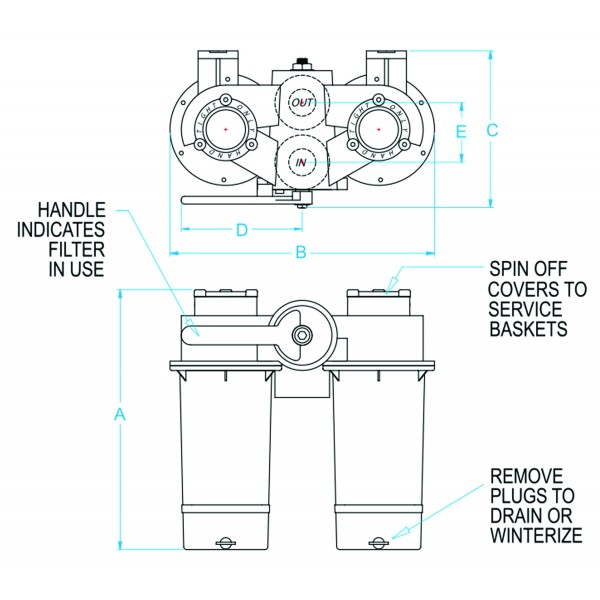

Dimensions
Thread NPT1-1/2"
A12.8
B17.2
C10.2
D5.1
E3.9
Open Area Ratio20
dimensions image
 Download Image  Open in New Window

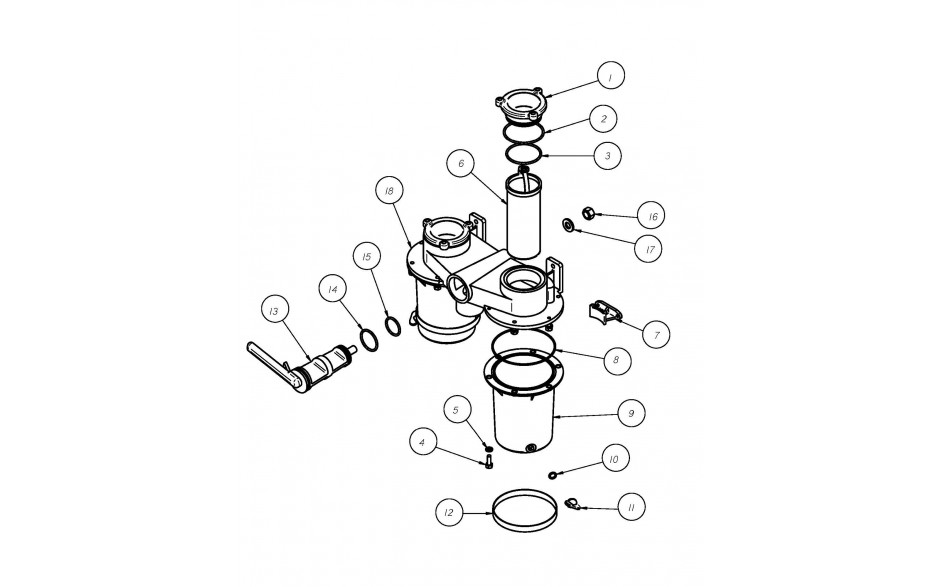

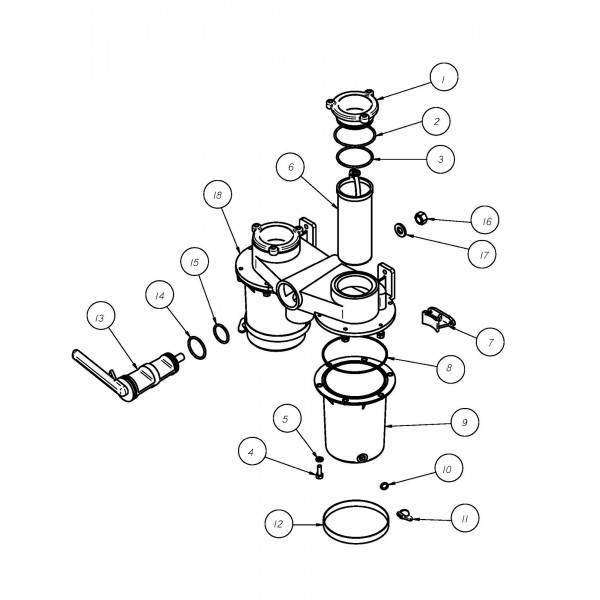

Individual Parts
exploded image
 Download Image  Open in New Window
  • 1
    ARG-1501-PC
    $45.00
    Qty Per Unit: 2
  • 2
    2-234
    $3.00
    Qty Per Unit: 3
  • 3
    2-238
    $3.00
    Qty Per Unit: 2
  • 4
    1420X34HS
    $1.00
    Qty Per Unit: 12
  • 5
    PFW-2 SET
    $5.00
    Qty Per Unit: 2
  • 6
    BM-9
    $285.00
    Qty Per Unit: 2
  • 6
    BP-9
    $79.00
    Qty Per Unit: 2
  • 6
    BS-9
    $90.00
    Qty Per Unit: 2
  • 7
    ARG-1504
    $46.00
    Qty Per Unit: 2
  • 8
    2-256
    $4.00
    Qty Per Unit: 2
  • 9
    ARG-1503
    $145.00
    Qty Per Unit: 2
  • 10
    2-111
    $1.00
    Qty Per Unit: 2
  • 11
    ARG-756
    $6.00
    Qty Per Unit: 2
  • 12
    ARG-1502
    $9.00
    Qty Per Unit: 2
  • 13
    932-1500 BPA
    $6,156.00
    Qty Per Unit: 1
  • 15
    2-240
    $2.00
    Qty Per Unit: 1
  • 15
    2-236
    $2.00
    Qty Per Unit: 1
  • 16
    5818HB
    $8.00
    Qty Per Unit: 1
  • 17
    VD-B
    $11.00
    Qty Per Unit: 1
